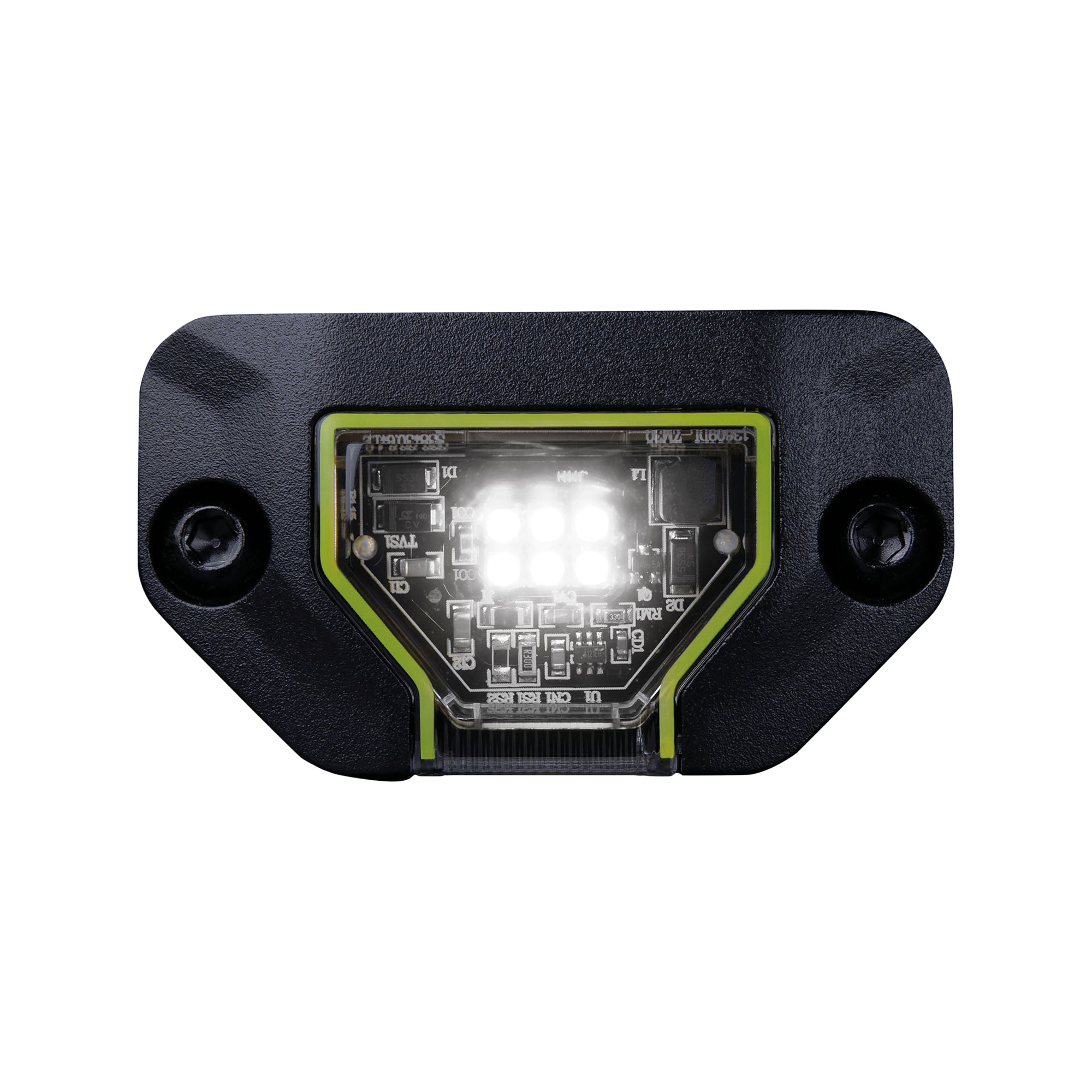

Strands Unity Rock Lights Scene Lights in White, Amber, Red & Yellow

The Strands Unity Rock Lights are a compact, durable light for mounting where space is limited. They have the highest IP69K Waterproof & Ingress Rating for off-road vehicles, agri, plant, trucks and commercial vehicles. Each rock light comes with three mounting brackets.

3 Mounting Brackets Included:

1. Flat Gasket - for flat panels
2. Curved Gasket - for mounting on round bars
3. Angled Gasket - for mounting high on the vehicle to give the optimum light spread

White Rock Light Specifications:

• Voltage: 10-32V DC
• Theoretical Effect: 9W
• Consumption: 7.8W
• Theoretical Lumen: 880lm
• Actual Lumen: 780lm
• 1 Lux @: 17m
• Color Temperature: 5700K
• Beam Pattern: Flood
• Connection: Cable
• Cable Length: 500mm
• Housing Color: Black
• Lens Color: Clear
• LED Color: White
• Length: 74mm
• Depth: 14.3mm
• Height: 42mm
• Height Including Bracket: 46.6mm
• CC (Center to Center): 60mm
• IP Class: IP69K
• Operating Temperature: -30°C to +65°C
• E-Approved: No
• EMC Compliance: ECE R10

Amber Rock Light Specifications:

• Voltage: 10-32V DC
• Theoretical Effect: 9W
• Consumption: 5.2W
• Theoretical Lumen: 880lm
• Actual Lumen: 340lm
• Connection: Cable
• Cable Length: 500mm
• Housing Color: Black
• Lens Color: Clear
• LED Color: Amber
• IP Class: IP69K
• Operating Temperature: -30°C to +65°C
• E-Approved: No
• EMC Compliance: ECE R10

Red Unity Rock Light Specifications:

• Voltage: 10-32V DC
• Theoretical Effect: 9W
• Consumption: 5W
• Theoretical Lumen: 600lm
• Actual Lumen: 200lm
• Connection: Cable
• Cable Length: 500mm
• Housing Color: Black
• Lens Color: Clear
• LED Color: Red
• IP Class: IP69K
• E-Approved: No
• EMC Compliance: ECE R10

Yellow Unity Rock Light Specifications:

• Voltage: 10-32V DC
• Theoretical Effect: 9W
• Consumption: 5.2W
• Theoretical Lumen: 600lm
• Actual Lumen: 460lm
• Color Temperature: 3000K
• Connection: Cable
• Cable Length: 500mm
• Housing Color: Black
• Lens Color: Clear
• LED Color: Yellow
• IP Class: IP69K
• Operating Temperature: -30°C to +65°C
• E-Approved: No
• EMC Compliance: ECE R10
