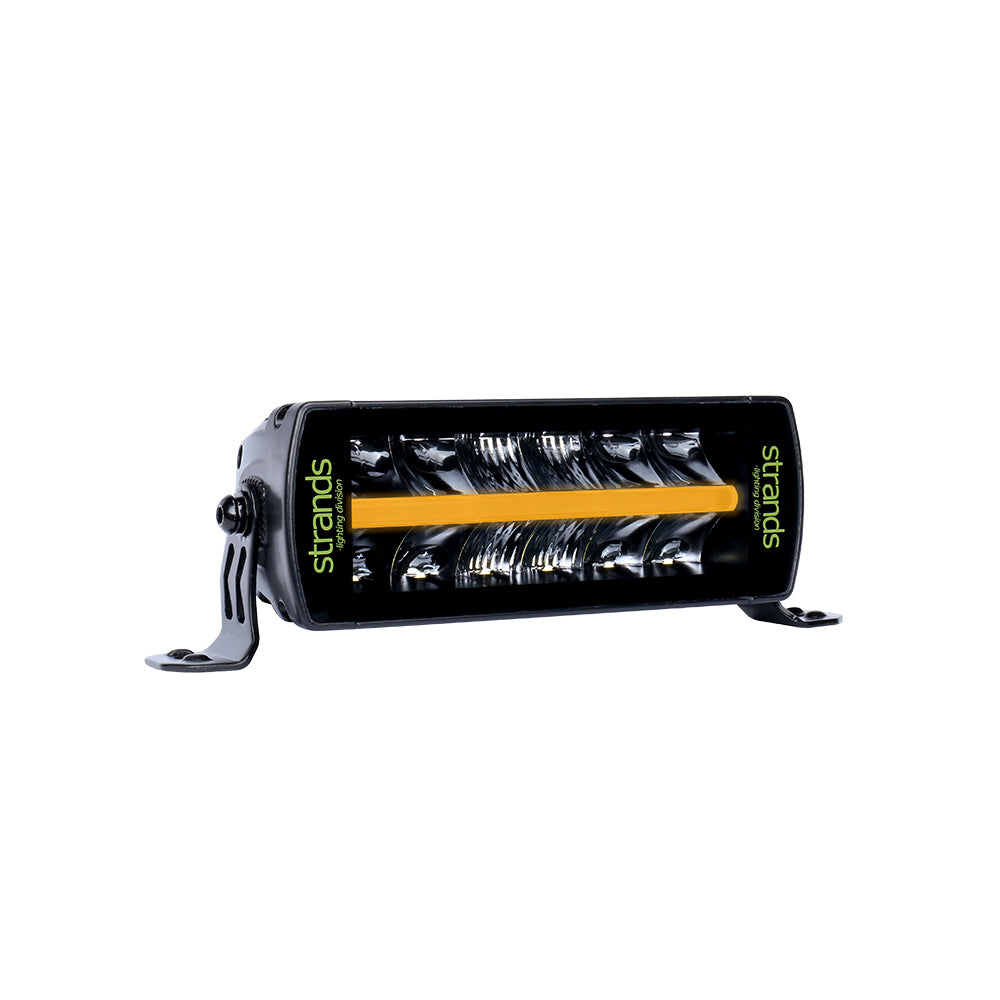

Strands Outlaw UDX LED Light Bar / 8"

The Strands Outlaw UDX is an 8" Light Bar for vans, 4x4s and trucks with huge output! This light bar has 2 modes:

1. A Fully E-Approved Full Beam
2.  "Xperience Mode" that can be activated for a huge lumen boost for off-road driving where extra light is needed.

These Strands Outlaw Light Bars are currently the most powerful light bars on the market, and feature new OSRAM P9 and CREE XPP LED Diodes that are revolutionising the automotive lighting industry.

These bars are generally mounted in pairs. Two mounting brackets are inluded. Feet at the end of the bar, or brackets behind the bar. If you are mounting these to a bull bar or top bar, mounting brackets are available here.

Activating the Xperience Mode: Turn on the main beam for 2 seconds, then flash 3 times for a much wider, longer beam pattern.

Siberia Outlaw UDX 8" LED Light Bar Specs:

• Type of lamp LED
• Type of LED OSRAM P9 & CREE XPP
• PCS LED´s 12
• Voltage (V DC) 10-32V DC
• Theoretical effect (w) 12V 120W
• Theoretical effect (w) 24V 120W
• Consumption (w) 12V E-approved mode: 31.7W
  Experience mode: 66.3W
• Consumption (w) 24V E-approved mode: 31.7W
  Experience mode: 66.3W
• Consumption specific function (w) 12V White position light: 1.8W
  Amber position light:3.7W
• Consumption specific function (w) 24V White position light: 1.9W
  Amber position light: 3.8W
• Theoretical lumen 7167
• Actual lumen E-approved mode: 2788
  Experience mode: 5758
• 1 LUX @ m E-approved mode: 327 m
  Experience mode: 464 m
• Kelvin 6500K
• IP-class 67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s While
• Beam pattern Combo
• Position light Yes white and amber
• Connection DT4
• Cable length (mm) 500
• Material bracket Stainless steel side brackets and aluminum bottom bracket
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Length (mm) 205
• Depth (mm) 71.6
• Height (mm) 76
• Height including bracket (mm) 89
• Operating temperature -30°C – +65°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R148 R149
• Reference number 25
• EMC ECE R10

These bars are backed by the Strands 3 Year Warranty, please note the 0.5metre cable on this lamp should not be cut as it may affect the warranty on the product.
