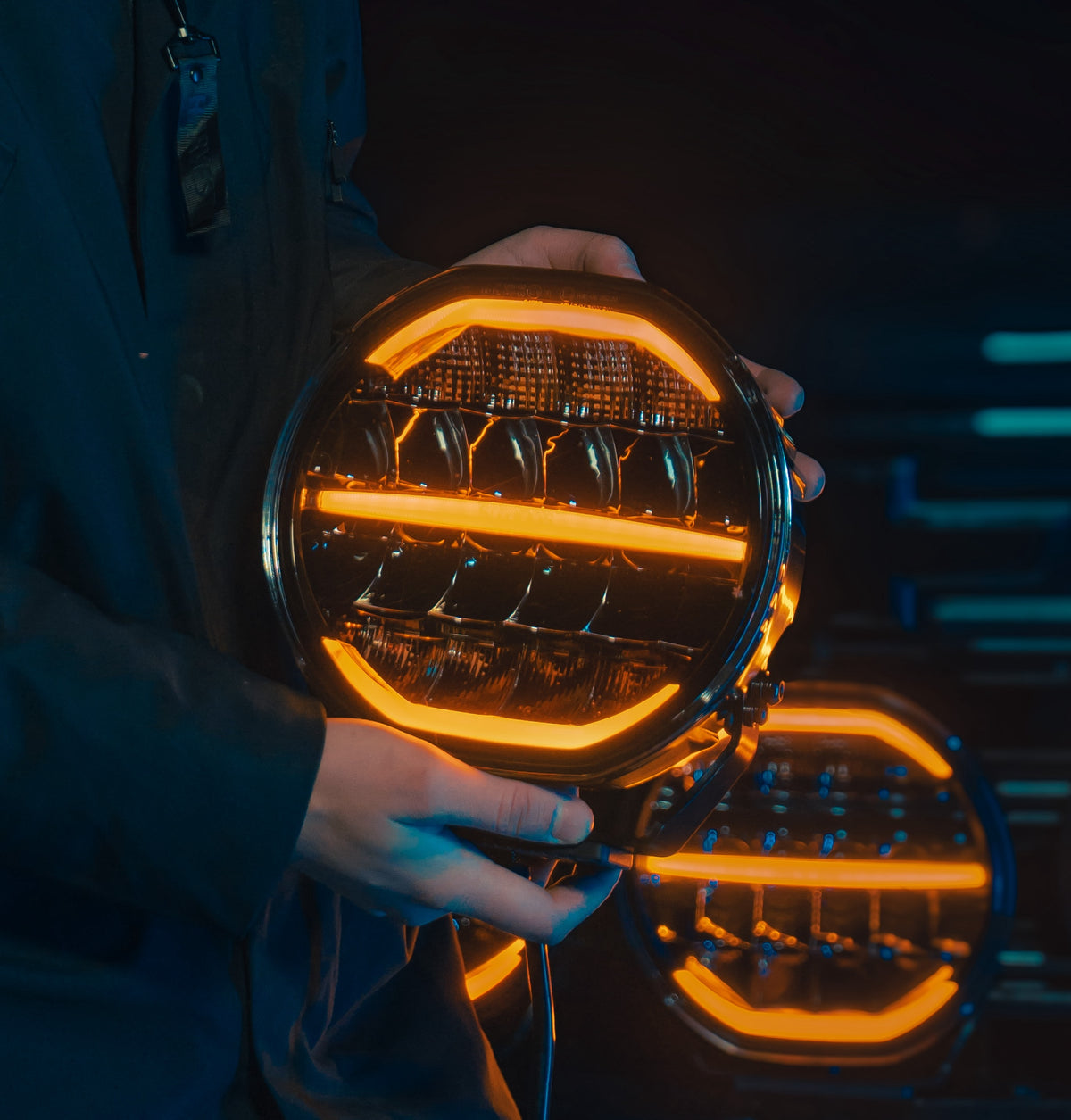

Nuuk D-Line 9” Driving Light

The Nuuk D-Line range welcomes a powerful new addition — a 9” driving light that delivers exceptional performance and versatility. In Xperience Mode, it provides an impressive range of over 800 meters with 13,400 actual lumens, offering outstanding brightness for all driving conditions.

The newly designed beam pattern perfectly balances width and distance, ensuring optimal illumination both near and far. With the Nuuk D-Line, you no longer have to choose between long-range visibility and close-range coverage — it delivers both.

In E-Mode, the light is E-approved (R148/R149) with a reference number of 20, making it fully road-legal.

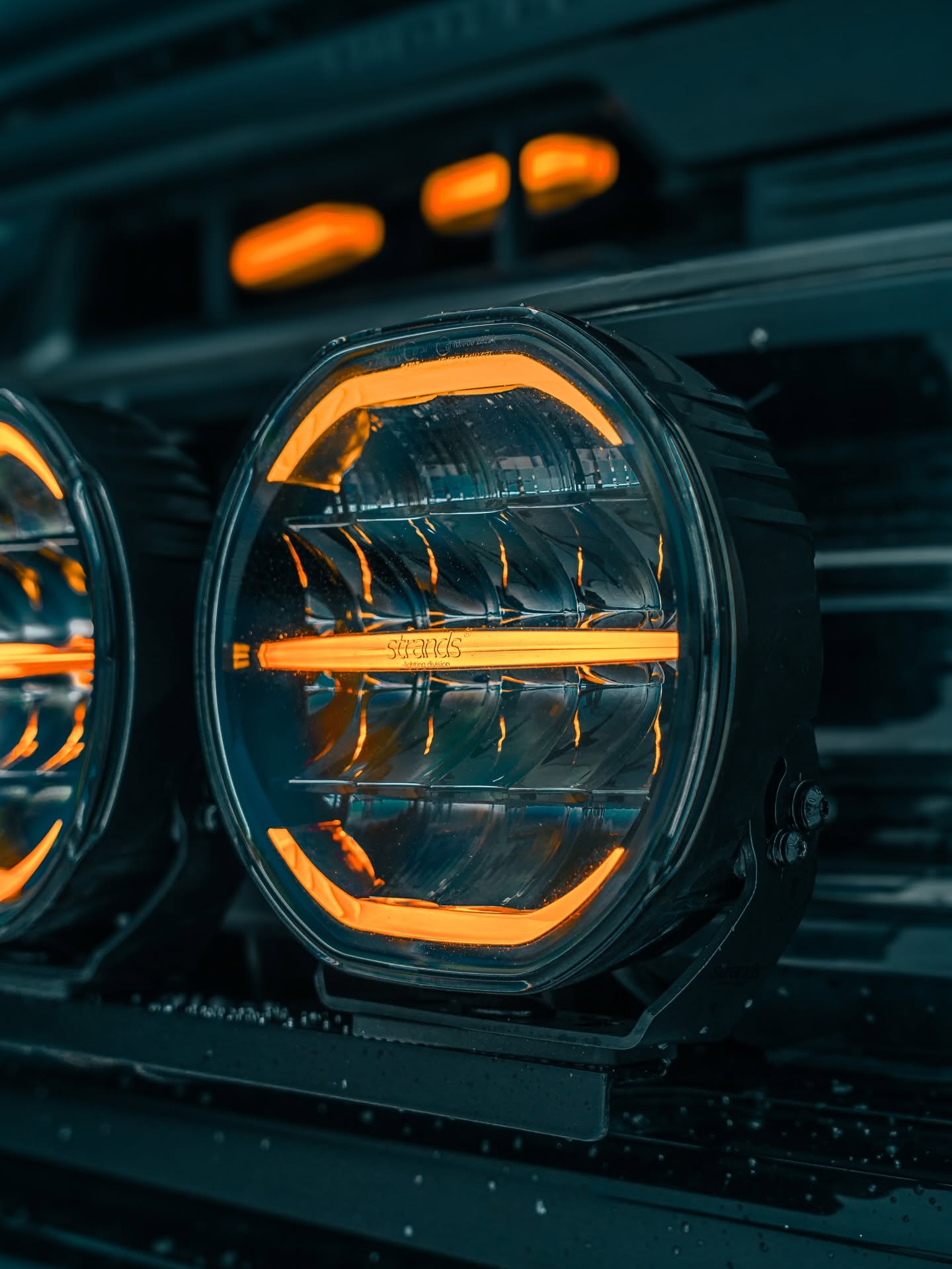

The D-Line also introduces a striking new position light design, the LEDs are integrated into the reflector to take full advantage of its dark mirror-like surface. This innovative setup creates a distinctive white or amber glow, enhancing both style and visibility.

Built to endure the toughest environments, the Nuuk D-Line is IP69K-rated and constructed from durable, high-quality materials with a new protective coating for extra resilience. Backed by Strands’ 3-year warranty, this driving light is designed for long-lasting reliability and performance.

For the wiring manual click here

Strands Nuuk D-Line 9” Specifications

Electrical Parameters

• Voltage (DC): 10–32 V DC
• Theoretical power: 185 W
• Power consumption: 171.0 W

Functions

• Amber position light
• White position light
• Driving beam

Power consumption by function:

• White position: 1 W
• Amber position: 1 W
• E-mode: 22 W
• X-mode: 171 W

Optical Specifications

• Theoretical luminous flux: 18,000 lm
• Actual luminous flux: 13,400 lm
• 1 lux @: 824 m
• Color temperature: 5700 K
• Beam pattern: Long-distance beam
• Beam angle: 13.6°

Construction & Materials

• Connection: Cable
• Cable length: 2500 mm
• Housing color: Black
• Lens color: Clear
• LED colors: White / Amber
• Bracket material: Stainless steel
• Housing material: Aluminum
• Lens material: Polycarbonate

Dimensions & Weight

• Diameter: 220 mm
• Length: 220 mm
• Depth: 82 mm
• Height: 208 mm
• Height (including bracket): 233 mm
• Weight: 2.61 kg

Environmental & Compliance

• IP rating: IP69K
• Operating temperature: -40°C to +60°C
• E-approved: Yes
• ECE approvals: R10.06, R148, R149
