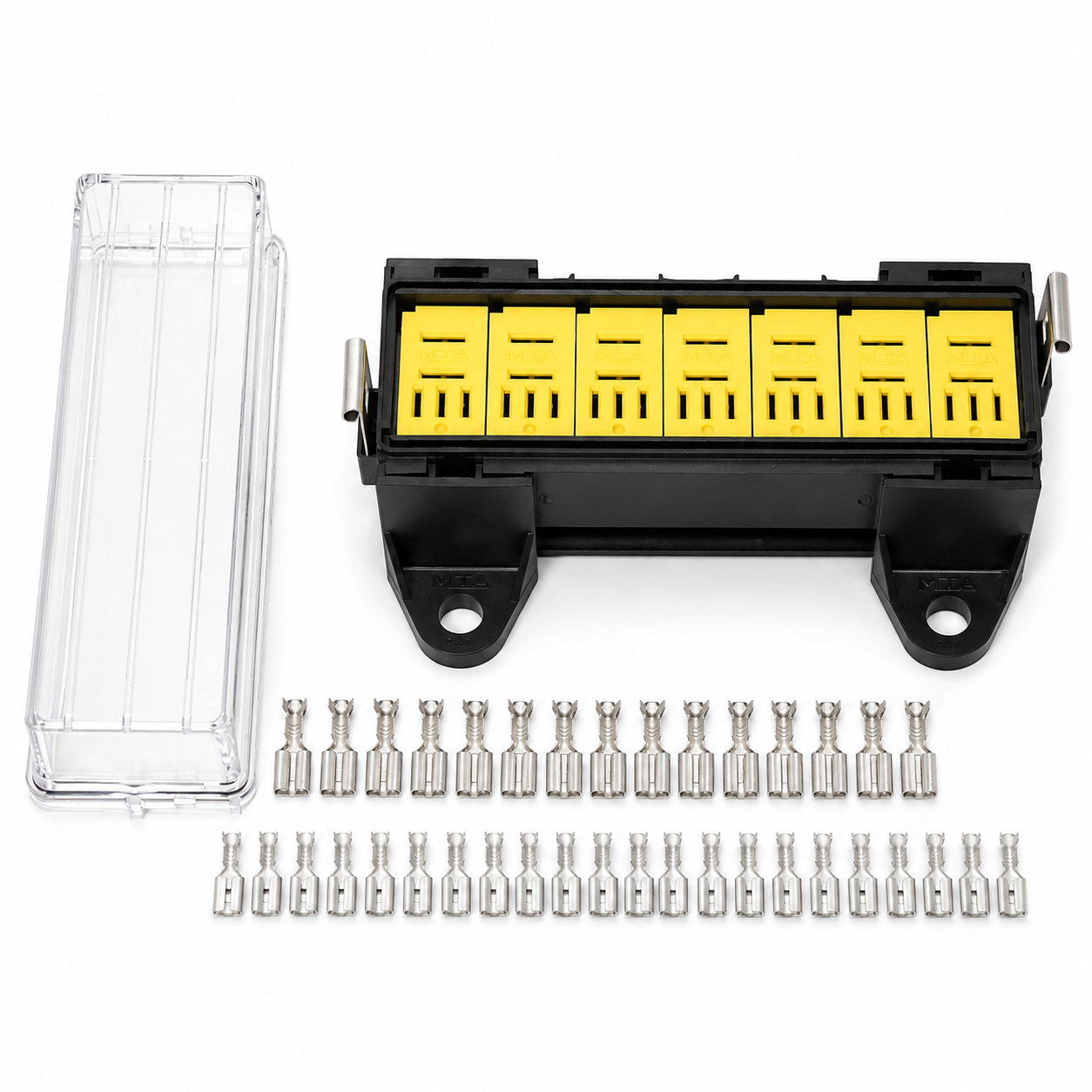

MTA 7 Way Micro Relay Box with Terminals

1 x 7 Way Relay Base Holder Kit with Terminals 0100705

Dimensions:

• Width – 90mm including feet
• Width – 50mm not including feet
• Height – 65mm
• Length – 130mm

Specifications:

• The terminals supplied with this Relay Holder are suitable for 1.00-2.50mm² wire to crimp the cables for insertion on the base of the box.
• The Relay Base can be clipped together with multiple boxes or used in conjunction with our 16 Way Fuse Holder and 4 Way Relay Boxes to form a single unit.
• Supplied in genuine MTA packaging
• Stainless steel clips to hold the lid firmly in place
• Plastic lid has a gasket to prevent water getting into the holder
