Halo Blitz Strobe Lights

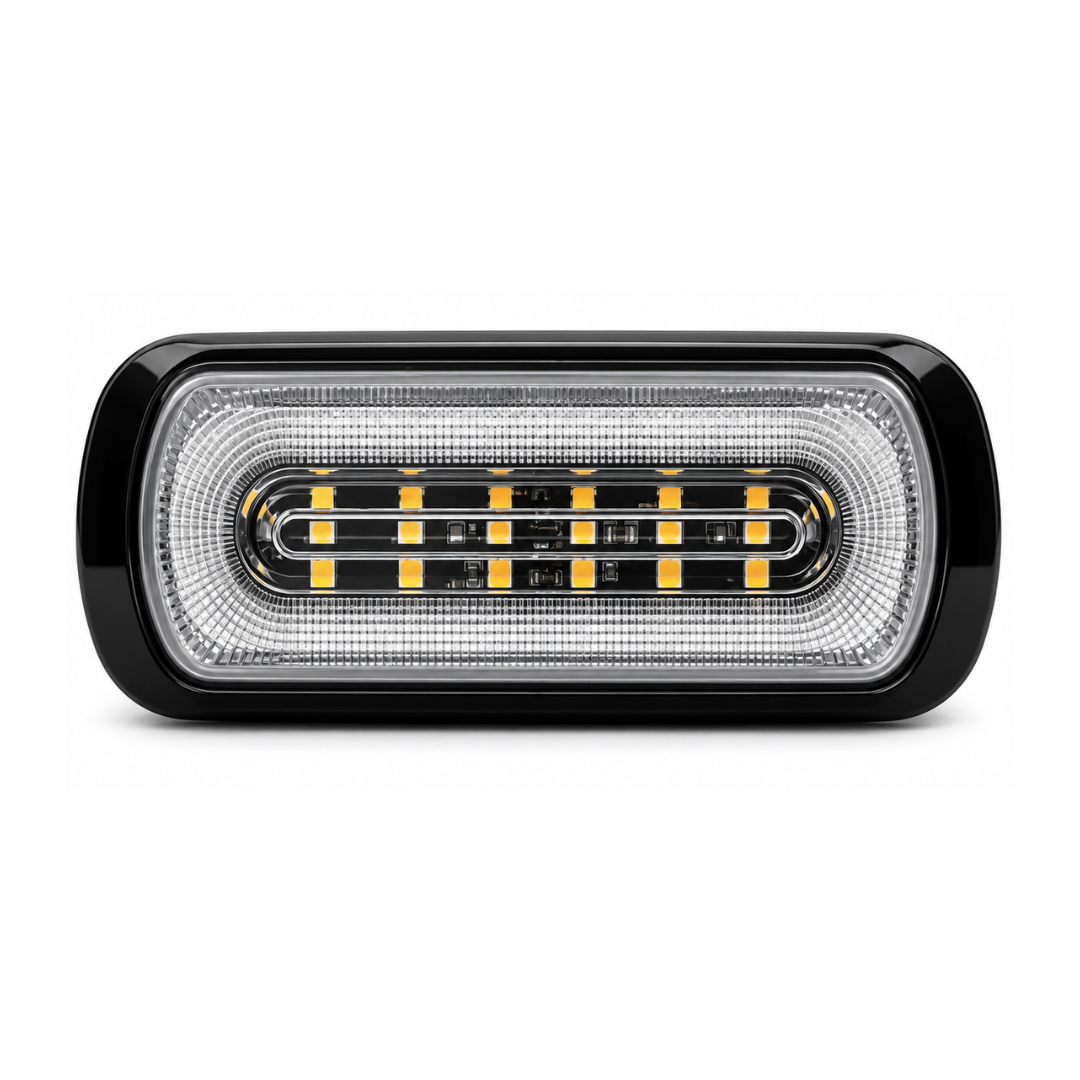

Probably the most popular grille light for trucks on the roads today. These halo blitz stobe lights have a nice neon halo around the edges of the lamp. It the centre, 6 x high power amber LEDs deliver a bright warning flash. Usually mounted on front grilles, these haloblitz lamp are also ideal for mounting at the back of tow trucks, recovery vehicles and down the side of trucks and trailers.

• Operating voltage: 12–24V DC multivoltage
• Power consumption: Maximum 18W
• Current draw: Maximum 1.35A at 12V DC / 0.75A at 24V DC
• Recommended fuse: 2A
• Lens finish: Clear
• Housing finish: Black
• LED configuration: 6 central warning LEDs plus 18 halo marker LEDs
• Installation orientation: Horizontal
• Flash patterns: 21 selectable patterns
• Synchronization: Supports up to 14 lights across two independent groups
• Warning-light colour: Amber

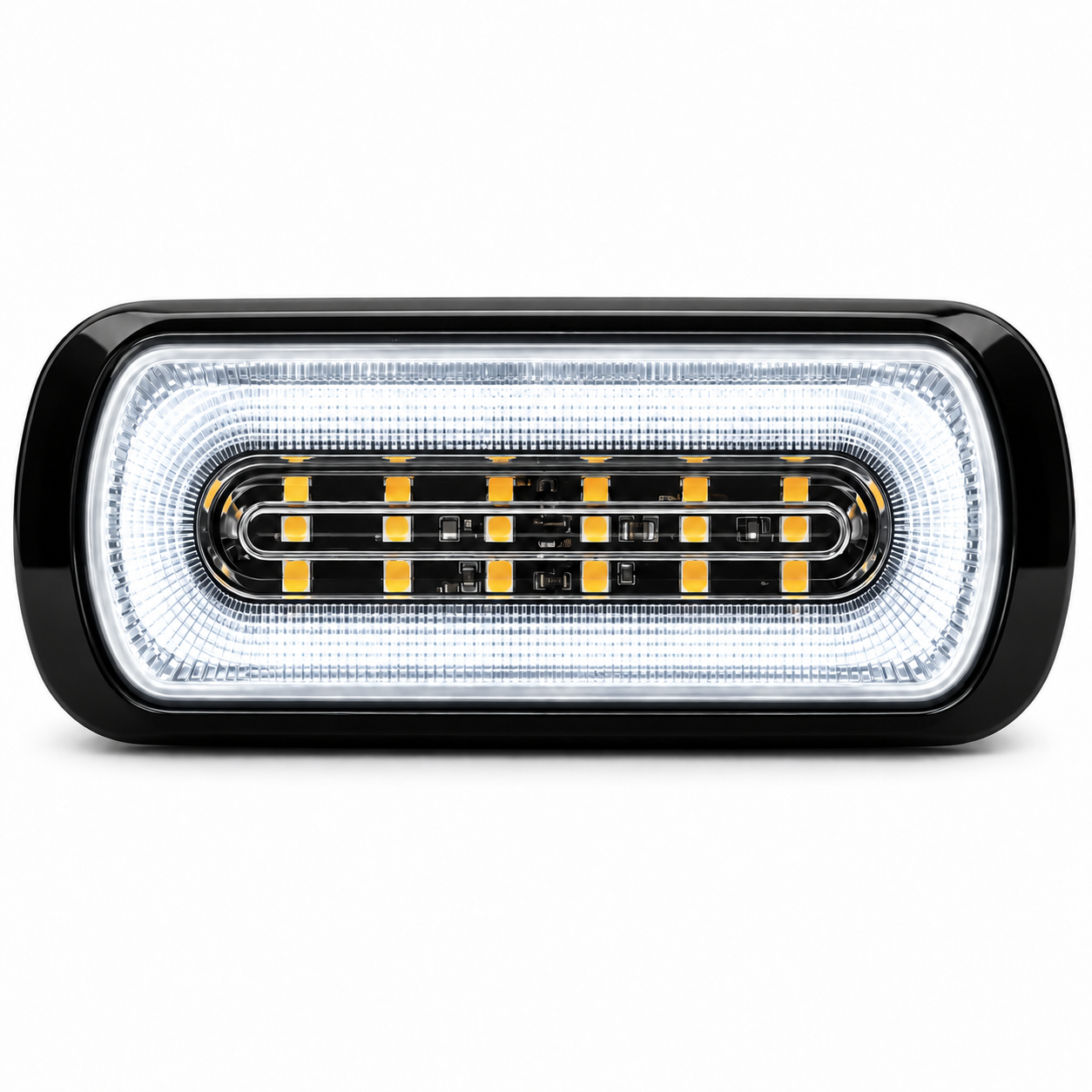

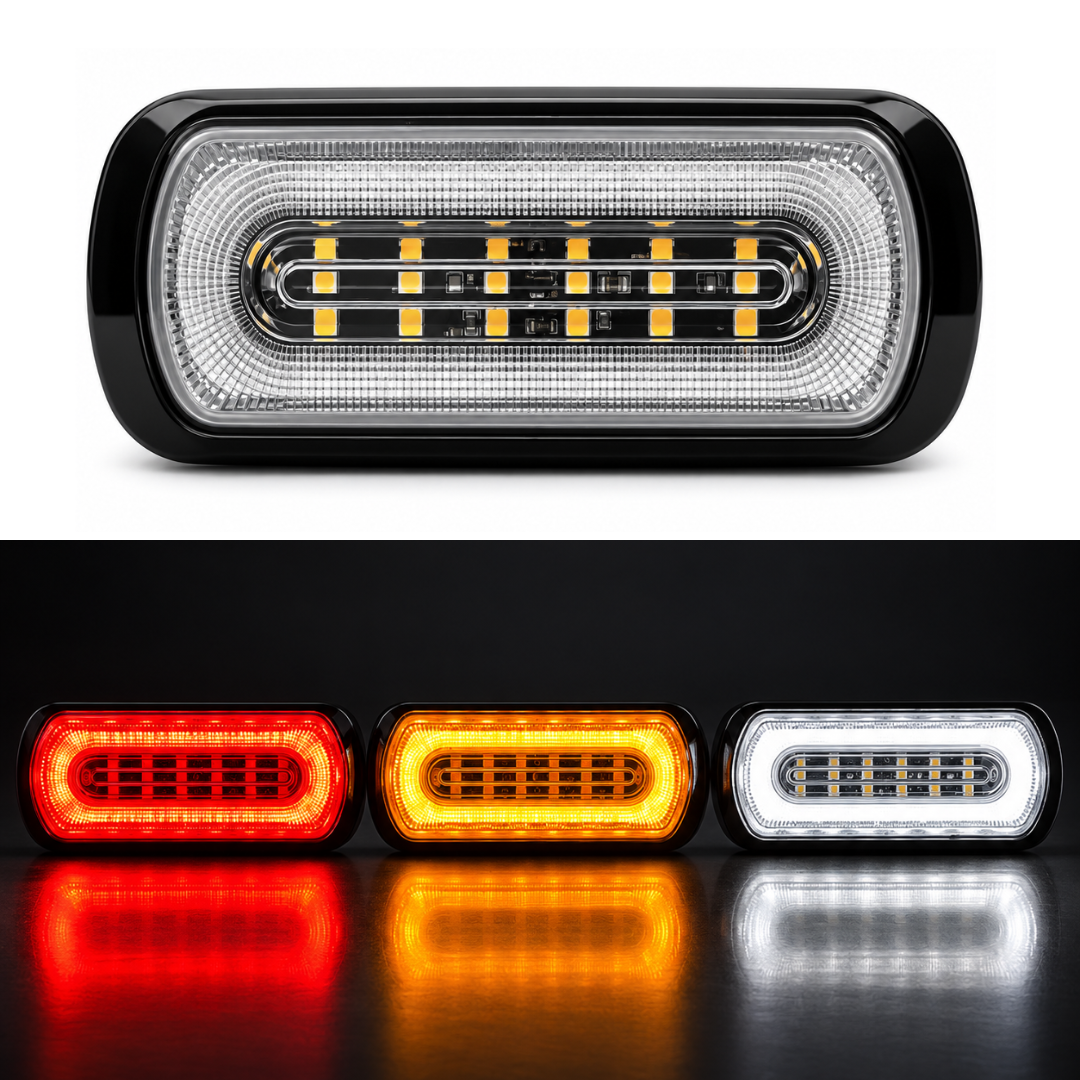

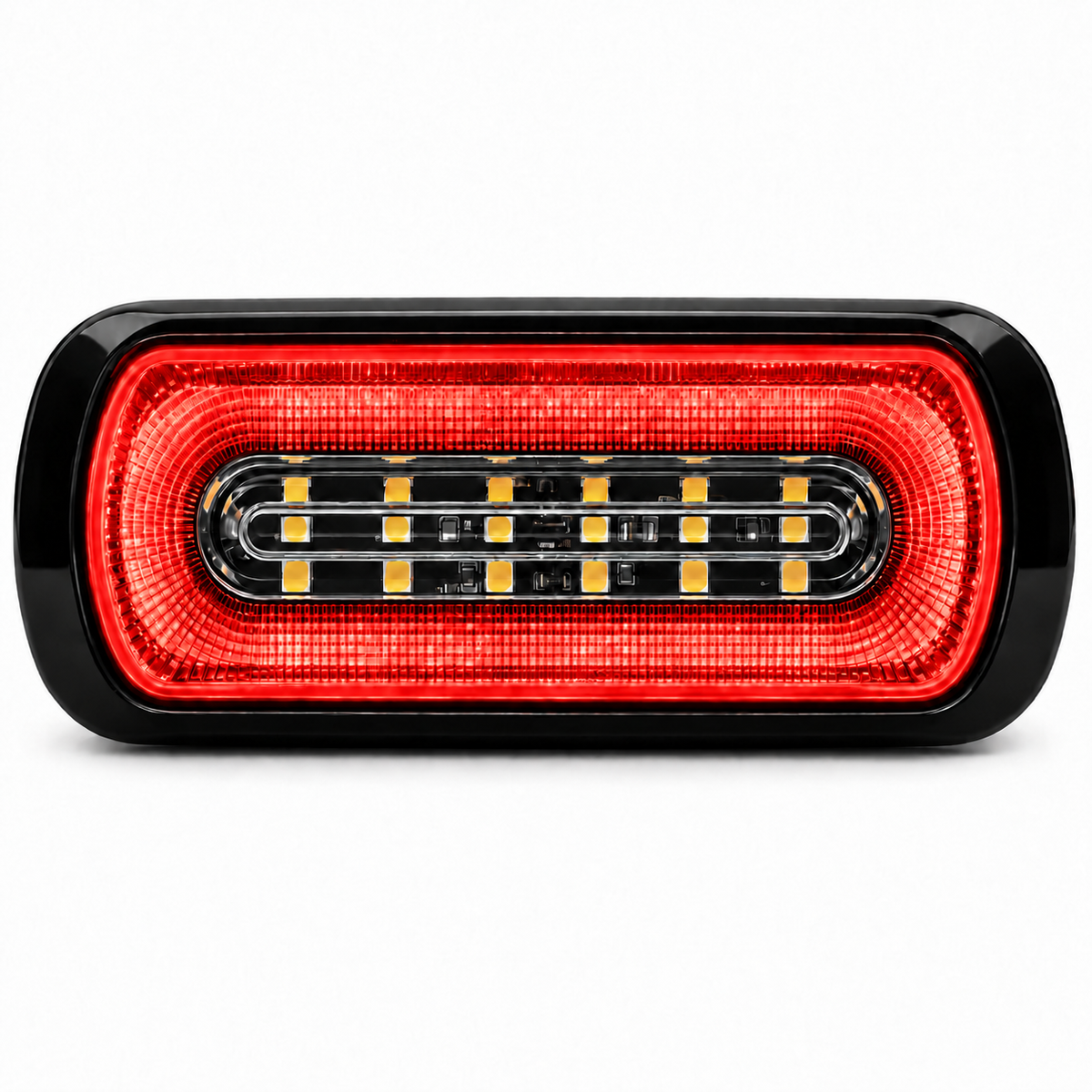

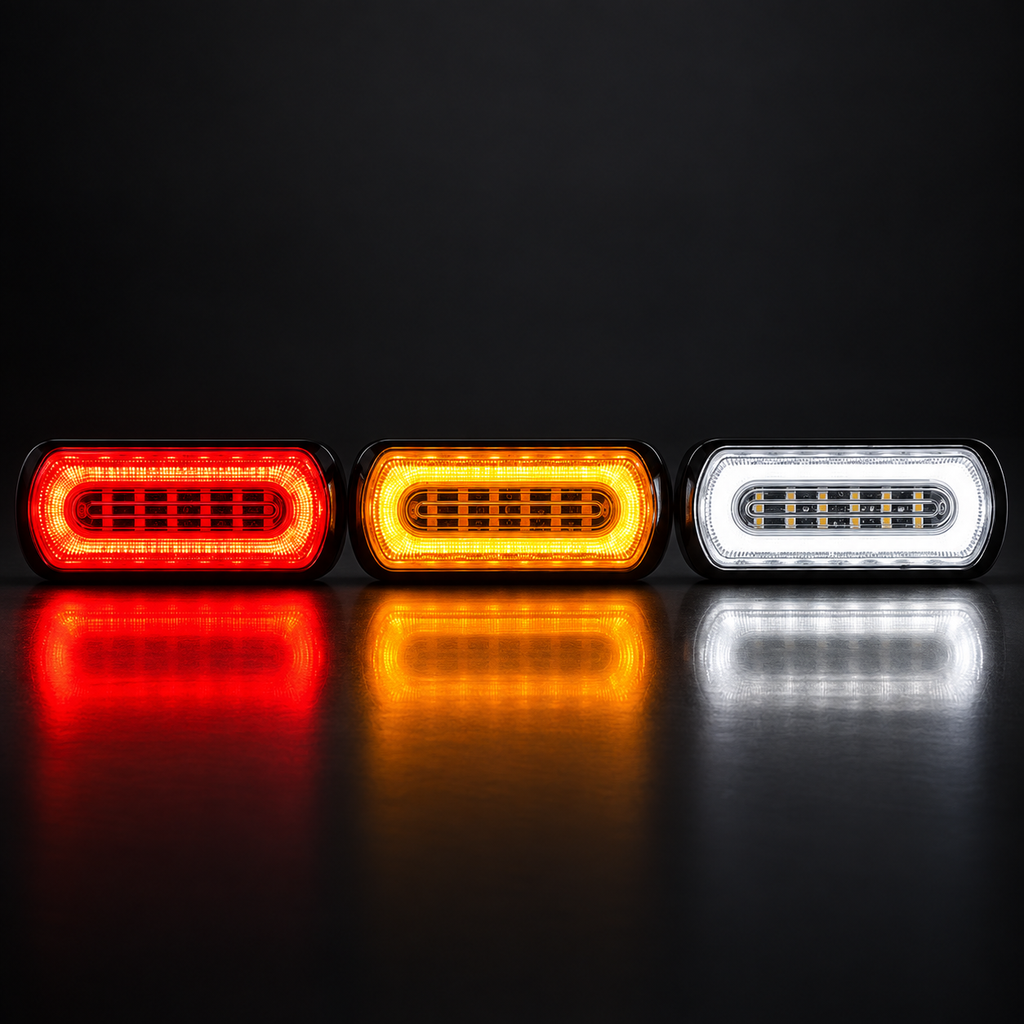

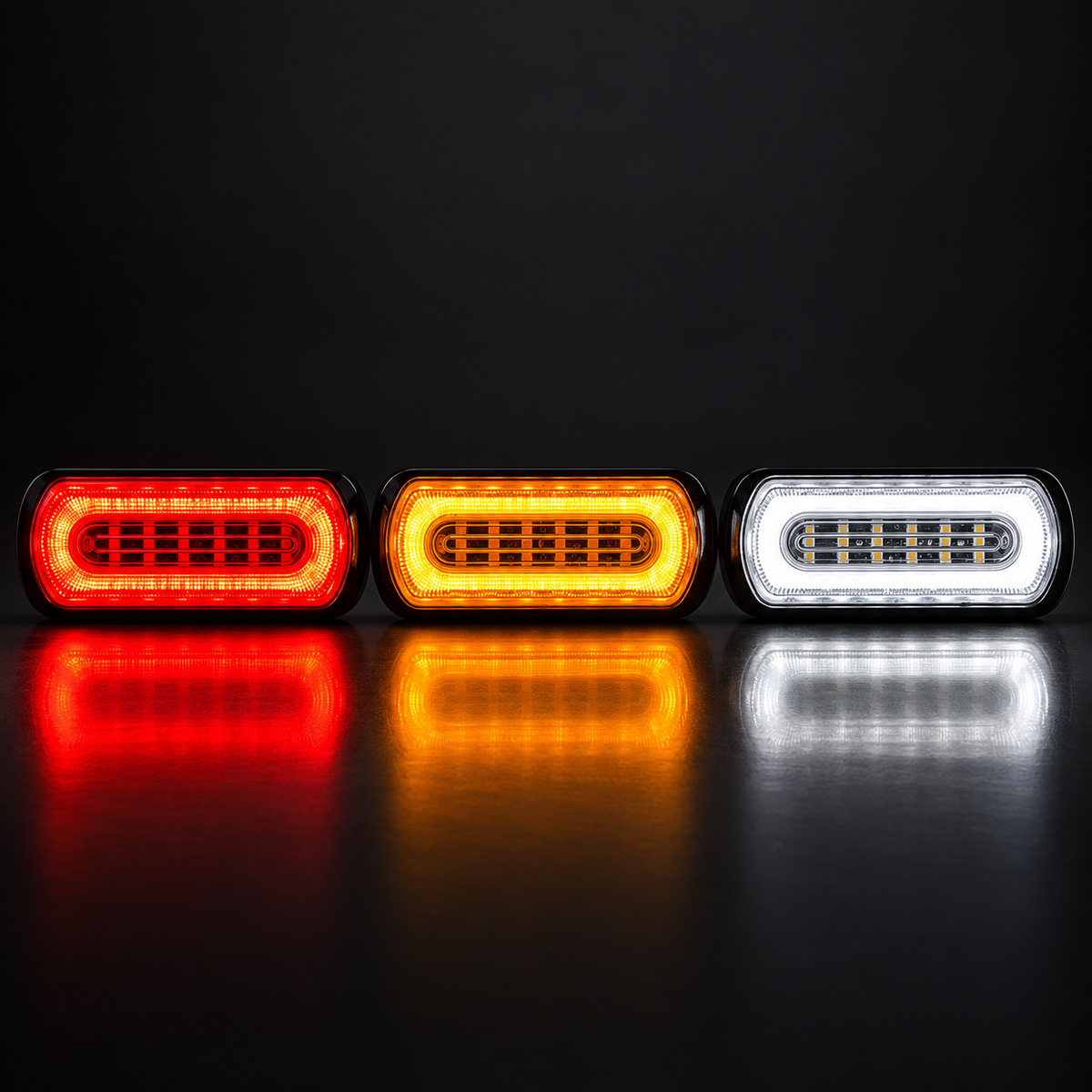

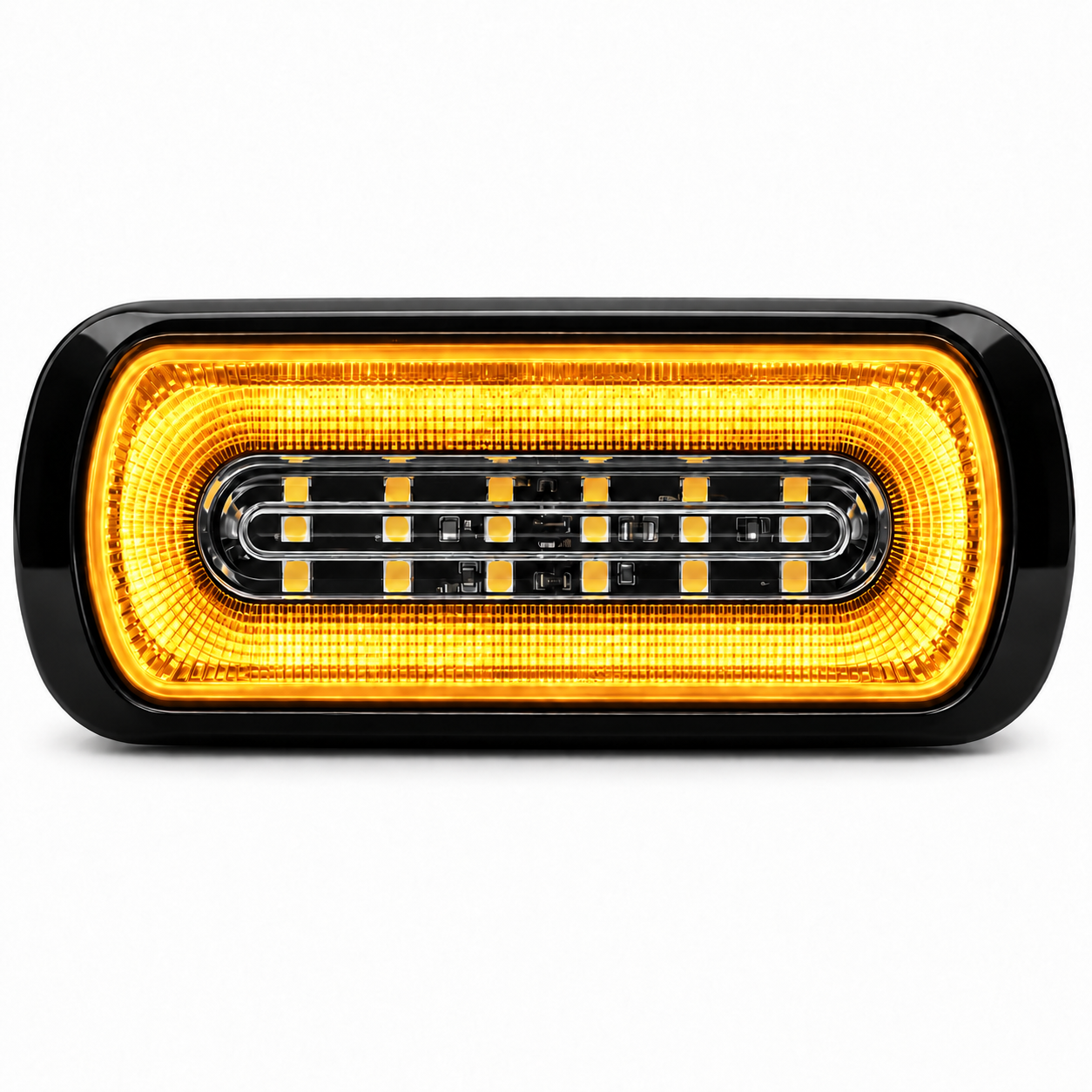

• Halo marker colours: Amber (ECE R6), red (ECE R7), or white (ECE R23)
• Wiring connections:
  • Red: Positive supply for high-intensity warning mode
  • Black: Negative/ground
  • Yellow: Pattern selection and synchronization; momentarily connect to black to advance to the next pattern
  • Grey: Positive supply for the halo marker ring
  • White: Positive supply for low-intensity warning mode

KEY FEATURES

• Long service life: LEDs rated for up to 100,000 operating hours
• Independent functions: Separate power inputs allow individual control of the warning strobe and halo marker ring
• Selectable operation: Multiple built-in flash patterns
• Pattern memory: Automatically restores the last-used flash pattern when powered on
• Durable construction: Designed to withstand weather exposure and vibration
• Thermal management: Aluminium base assists with efficient heat dissipation
• Electrical protection: Built-in reverse-polarity protection
• UV stability: Lens material is resistant to ultraviolet exposure
• Warranty: 2 years

CERTIFICATIONS & PROTECTION

• ECE approvals: EMC R10, R65 Class 1 and R148 (R6/R7/R23)
• Product markings: E-marked, CE and UKCA
• Ingress protection: IP67 and IP69K
• EMC performance: CISPR 25 Class 3
• SAE compliance: J595 Class 1

DIMENSIONS

• Overall size: 132mm wide × 51mm high × 19mm deep
• Mounting centres: 120mm
