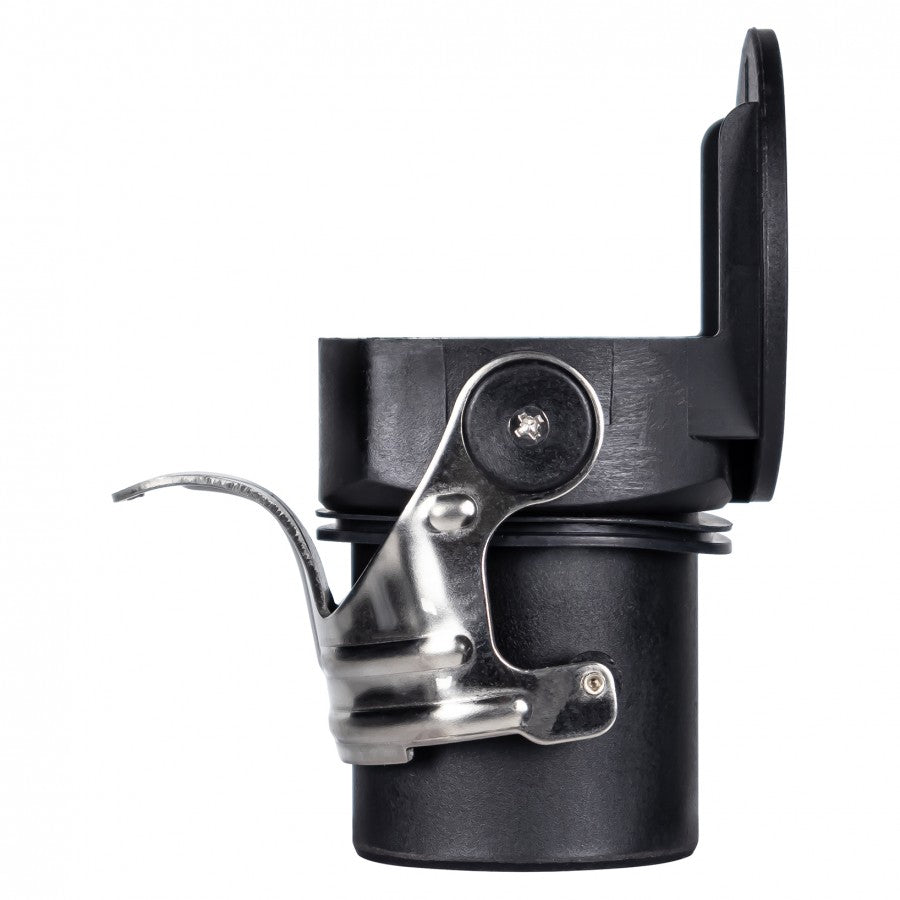

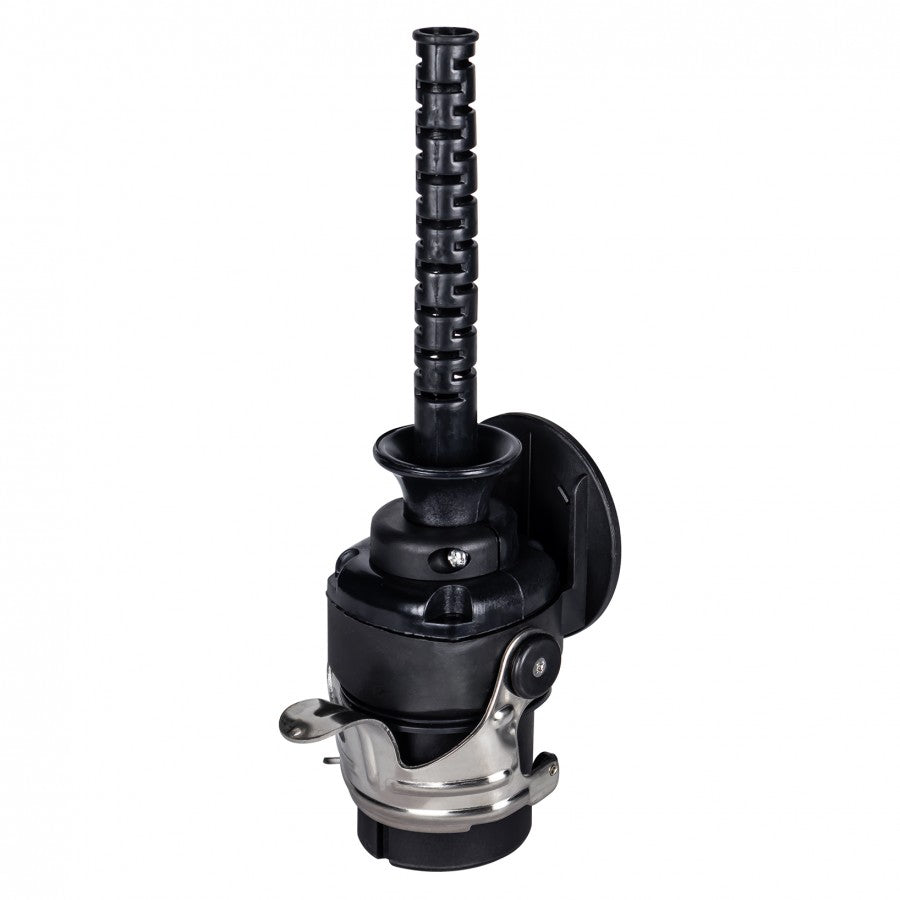

EBS Plug 7 Pin

The EBS connector is used to connect electronic systems in vehicle-trailer combinations. Its bolted construction ensures a stable connection even when driving in challenging conditions, supporting the proper operation of critical safety systems. Designed for professional use in heavy-duty transport, the robust housing protects the connection from damage, making it a key element of any EBS installation.

Wiring Pinout

• 1: +12V DC
• 2: +12V via ignition
• 3: Ground (for pin 2)
• 4: Ground (for pin 1)
• 5: ABS fault indication (when the voltage is below +5V)
• 6: CAN H / CAN R (for EBS and ABS)
• 7: CAN L (for EBS and ABS)

Product Features

• Stable and secure bolted connection
• Supports vehicle safety systems (ABS/EBS)
• Highly resistant to vibrations and harsh road conditions
• Engineered specifically for heavy transport applications

Technical Data

• Voltage: 24V
• Number of Pins: 7
• Color: Black
• Weight: 218g
