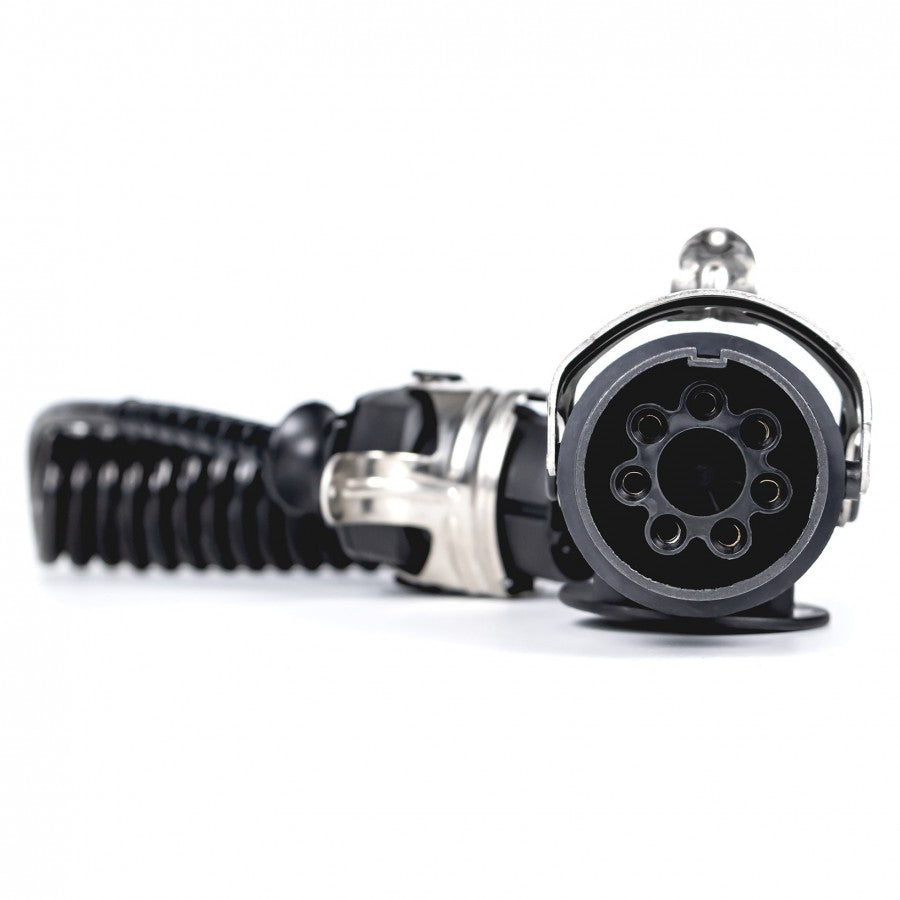

EBS Electric Suzie Coil / 4 Metre

EBS Electric Susie Coil

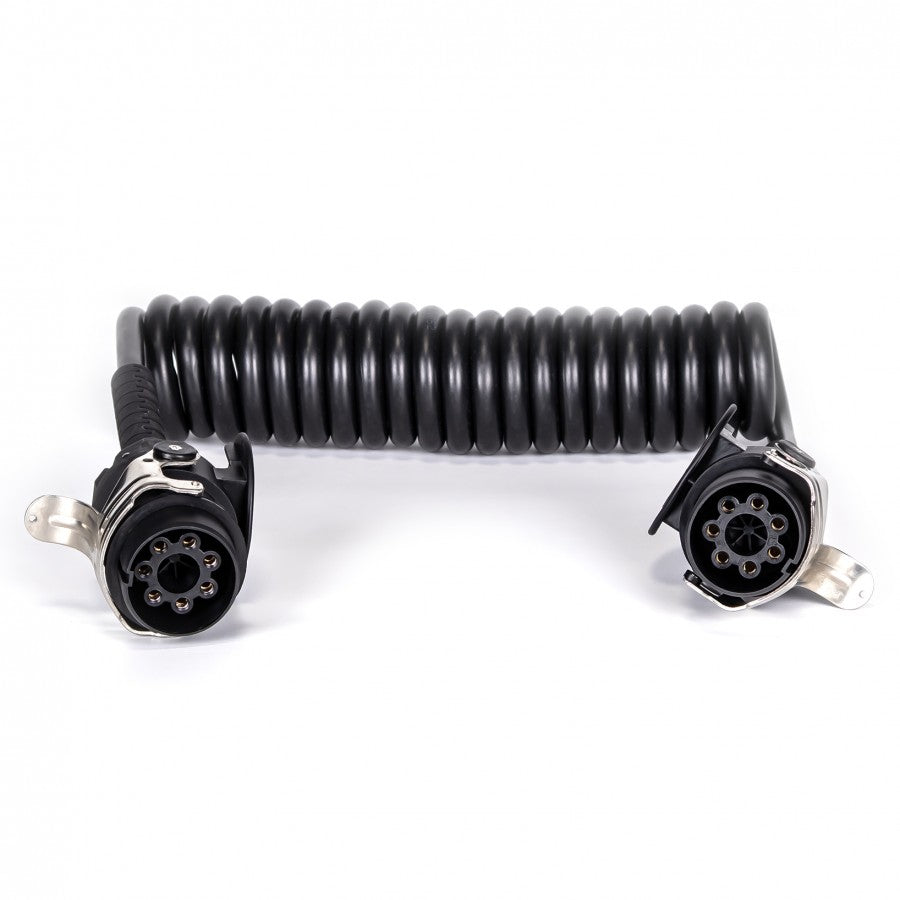

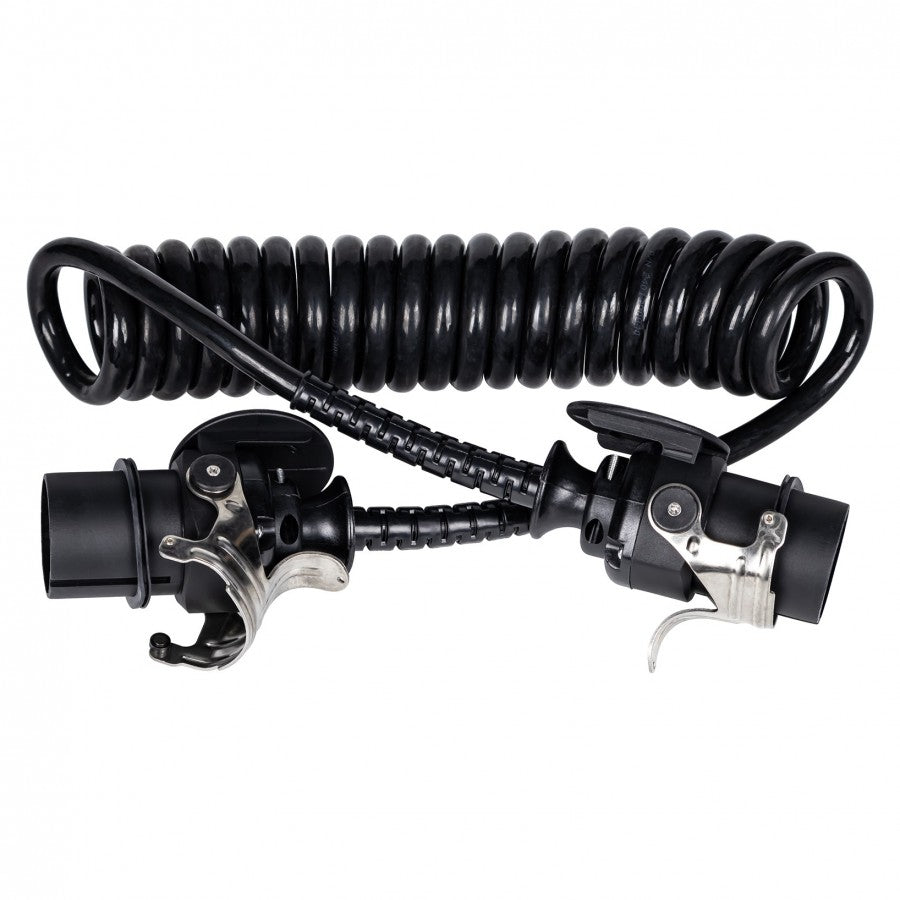

The EBS 3.8m electric cable is an element through which the user can make a solid connection between the semi-trailer and the vehicle. The connection created in this way allows the use of the braking system or lighting functions in the semi-trailer itself. The supported functions include: +24V permanent; +24V via the ignition switch; ground (pin 2); ground (pin 1); ABS failure signaling when voltage is below +5V; CAN H for EBS and ABS; CAN L for EBS and ABS.

Technical data of the EBS 3.8m electric suzy cable:

• Voltage: 24V
• Number of pins: 7
• Working length: 3.8 m
• Colour: black
• Weight: 1.26kg
