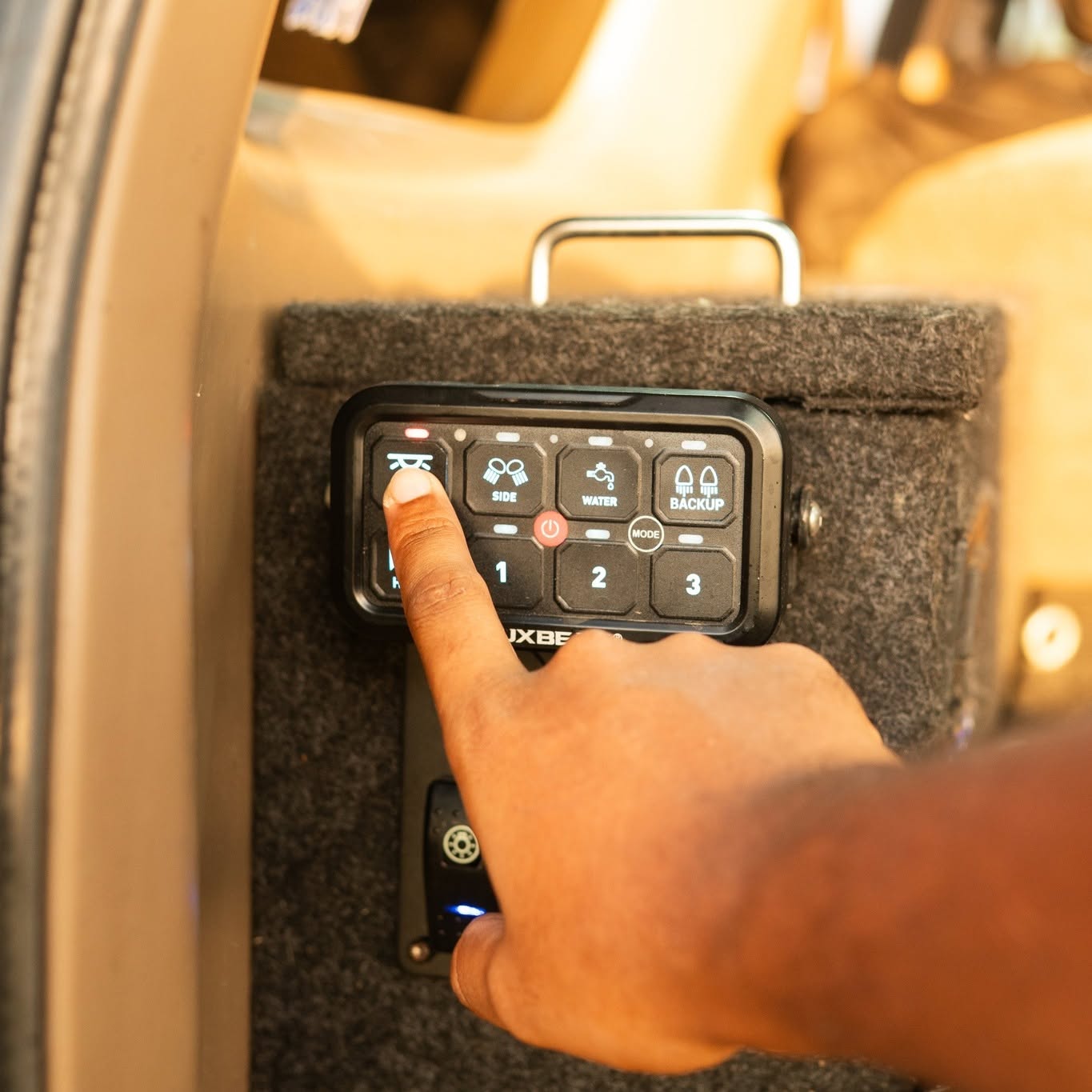

Auxbeam 6 Way Control Switch Panel - QP010783 - RA60

6-gang one-sided outlet switch panel

The Auxbeam switch panel is ideal for auto electrical lighting set-ups with various types of lighting and functions. This panel gives the user full control of lighting from inside the vehicle. Each button can be easily configured to make lights flash, turn on and off or momentarily turn on - whatever you need! Auxbeam panels work on 12 and 24V systems making it the ideal solution for cars, vans, tractors, trucks, boats and more!

What's in the box?

• RA60 Switch Panel
• Circuit Control Box
• Mounting Brackets
• 10ft Wiring Harness (from control box to switch panel)
• 60 Stickers
• Waterproof cover for switch panel
• Micro 2 & Mini Fuse Taps
• 10mm2 Battery Cables
  • 1 x Black Cable (820mm)
  • 1 x Red Cable (820mm)
  • 1 x Red Cable (420mm)
• Circuit Breaker
• Double Sided Sticky Tape
• Cable Ties and Screwdriver

3 Switch Modes

• Red – Toggle Mode
  • Constant ON/OFF operation
  • Ideal for driving lights, work lights tec.
• Blue – Momentary Mode
  • Device stays on only while the button is pressed
• Green – Pulsed Mode
  • Flashing ON/OFF mode
  • Continues until the switch is pressed again

Additional Features

• Adjustable RGB backlight colour and brightness
• Automatic dimming based on ambient lighting conditions
• Includes 60 universal switch stickers for custom labelling
• IP65 waterproof rating
• High sensitivity with strong anti-interference performance
• Plug & play installation
• No complex wiring or large dashboard cut-outs required
• 2 mounting options:  Bracket or Adhesive Mount

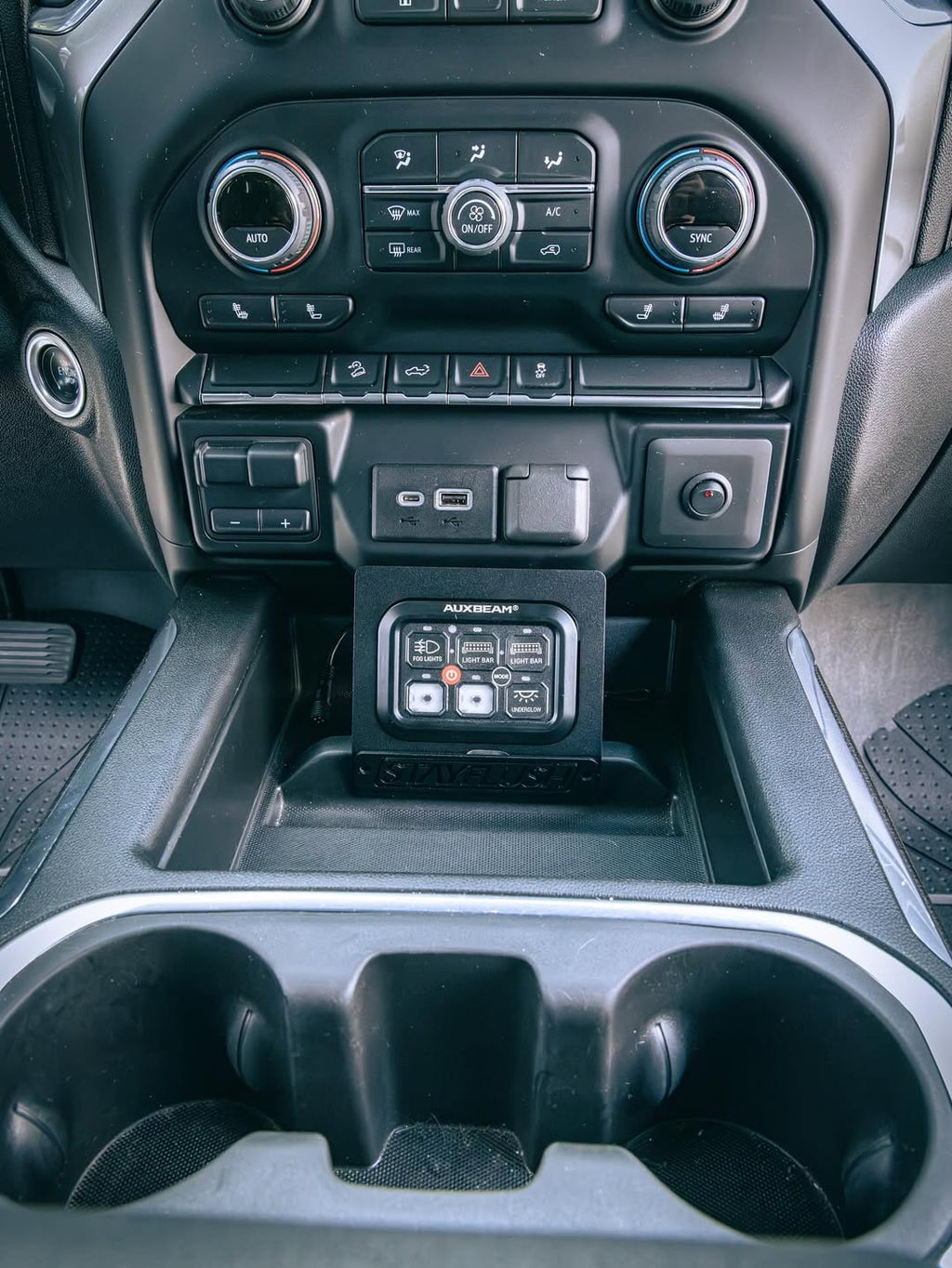

• Suitable mounting locations include:
  • Dashboard
  • Centre console
  • Overhead sunglasses holder

Universal Fitment

Suitable for use with:

• Trucks
• Boats
• Cars
• Buses
• Off-road vehicles
• Marine applications
• ATV / UTV
• SUVs
• Side-by-Sides (SxS)
• Heavy-duty machinery

Features

• Supports DC 12V–24V input
• Thick heavy-duty cable construction
• Excellent protection against EMI and RF interference

No Wire Splicing Required

• Extends existing wiring easily
• Compatible with DC 12V–24V systems
• Works with:
  • Rear-view cameras
  • DVD players
  • TV boxes
  • CCTV systems
