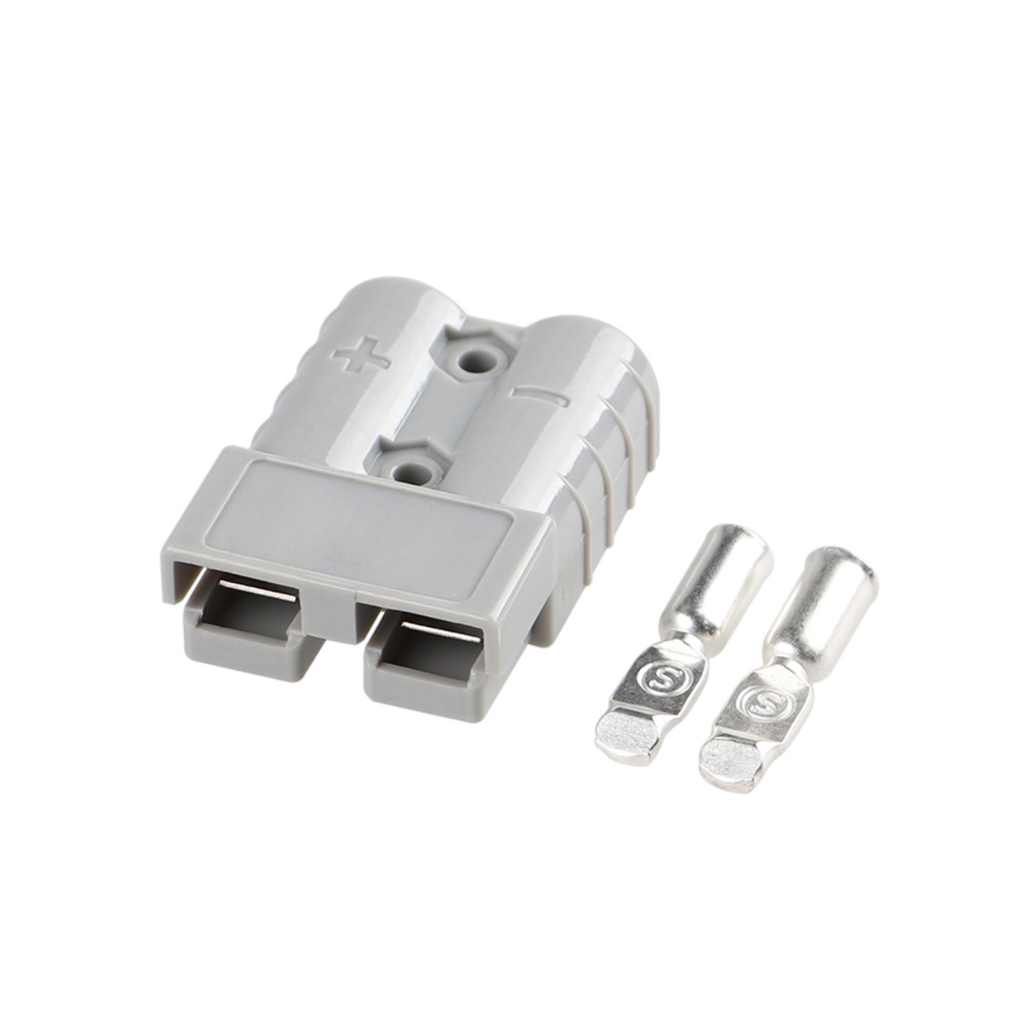

50A Anderson Style Grey Power Connector

This high-performance power connector is designed for reliable use in both AC and DC systems, these Anderson Style Connectors have a voltage rating of 600V and a maximum current rating of 50 Amps. The housing is manufactured with durable PC flame-retardant material (UL94 V-0 rated) and two silver-plated copper terminal lugs are included.

Anderson connectors are genderless so both sides of the connection are identical. Simply turn one of the connectors upside down and slide them together for a secure connection.

The connector supports high-frequency operation and is manufactured using a precision cold-pressing process to ensure a strong, stable connection and long service life.

50A Power Connector Specifications:

Electrical Parameters

• Rated current: 50 A
• Rated voltage: 600 V

Electrical Performance

• Insulation resistance: 9900 MΩ
• Flammability rating: UL94 V-0

Cable Compatibility

• Contact barrel wire size: 6 AWG – 12 AWG

Construction & Materials

• Shell colors: Yellow / Red / Blue / Black / Green
• Terminal material: Red copper
• Manufacturing process: Precision punching

Environmental

• Operating temperature: -20°C to +75°C
