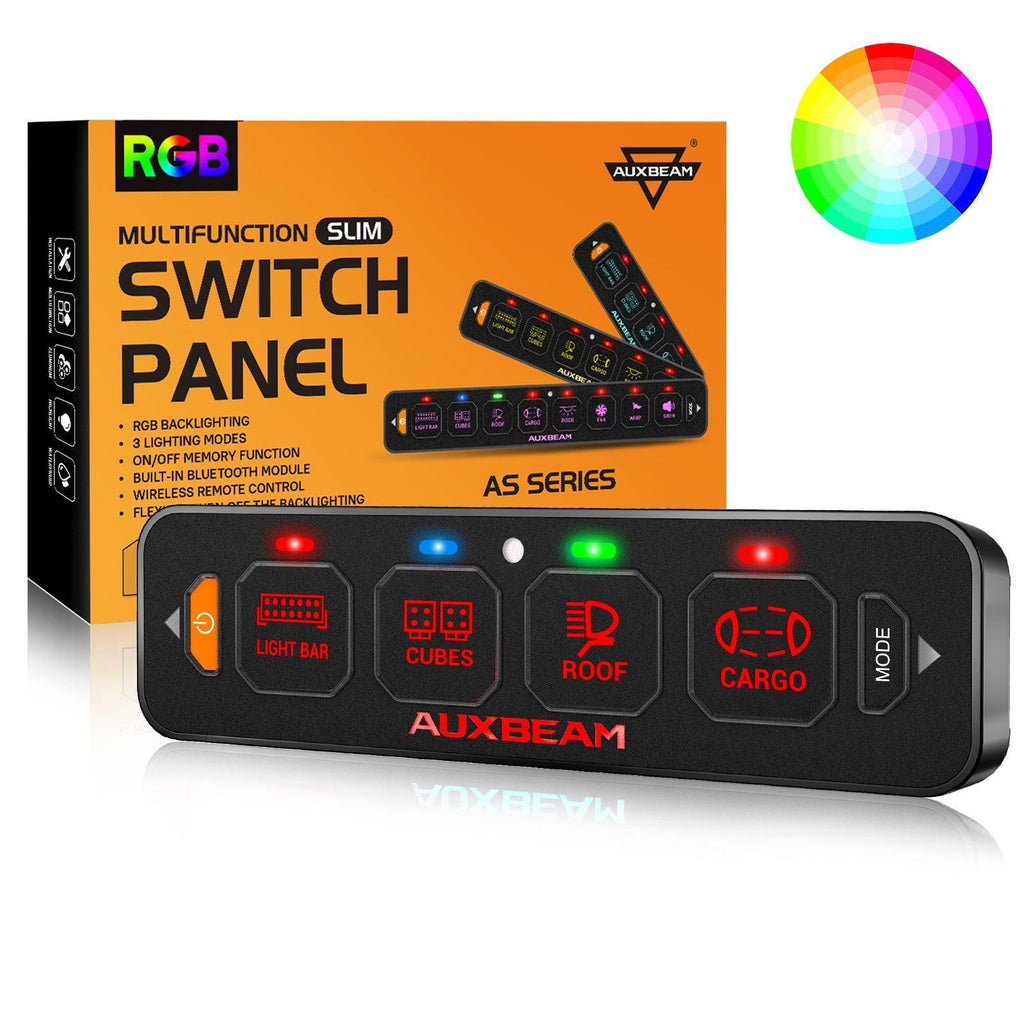

Slim Auxbeam 4 Way Control Switch Panel – QP011664 - AS-R40 Series

4-gang RGB switch panel with one-sided output for tidy wiring.

The Auxbeam AR-R40 slimline switch panel is designed for advanced vehicle electrical and lighting control setups. Ideal for cars, vans, 4x4s, trucks, tractors, boats, off-road vehicles and more, this panel allows full control of multiple accessories from inside the vehicle. Each switch can be configured for constant on/off operation, momentary activation or pulsed flashing mode depending on your application.

Compatible with both 12V and 24V systems, the RB120 features customisable RGB backlighting, automatic dimming and a heavy-duty waterproof design for demanding environments.

Specifications

• Voltage Input: DC 12–24V
• Maximum Current: 60A
• Rated Voltage: 12V 20A / 24V 10A
• Maximum Power:
  • 720W @ 12V
  • 1400W @ 24V
• Waterproof Rating: IP65
• Operating Temperature:
  • -40°C to 105°C
  • -40°F to 221°F
• Voltage Input: DC 12-24V

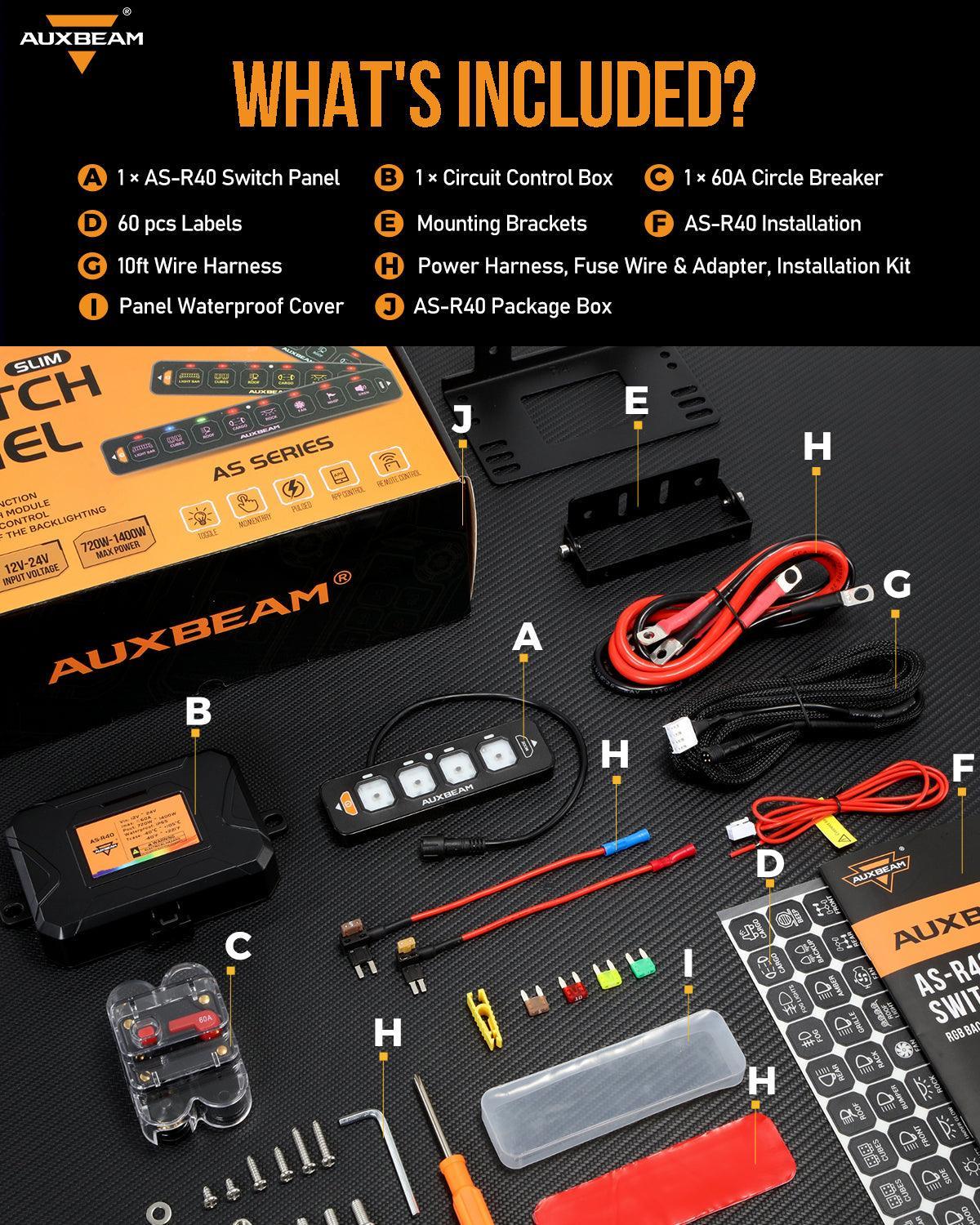

What’s in the Box?

• AR-R40 RGB Switch Panel
• Circuit Control Box
• Mounting Brackets
• Wiring Harness
• 60 Universal Stickers
• Waterproof Silicone Cover
• Mounting Hardware

3 Switch Modes

Red – Toggle Mode

• Constant ON/OFF operation
• Ideal for driving lights, work lights and other accessories

Blue – Momentary Mode

• Device stays active only while the button is pressed
• Ideal for horns or temporary functions

Green – Pulsed Mode

• Flashing ON/OFF mode
• Continues until the switch is pressed again

3 Switch Modes

Red – Toggle Mode

• Constant ON/OFF operation
• Ideal for driving lights, fog lights and work lights

Blue – Momentary Mode

• Device stays active only while the button is pressed
• Ideal for horns or temporary functions

Green – Pulsed Mode

• Flashing ON/OFF mode
• Continues until the switch is pressed again

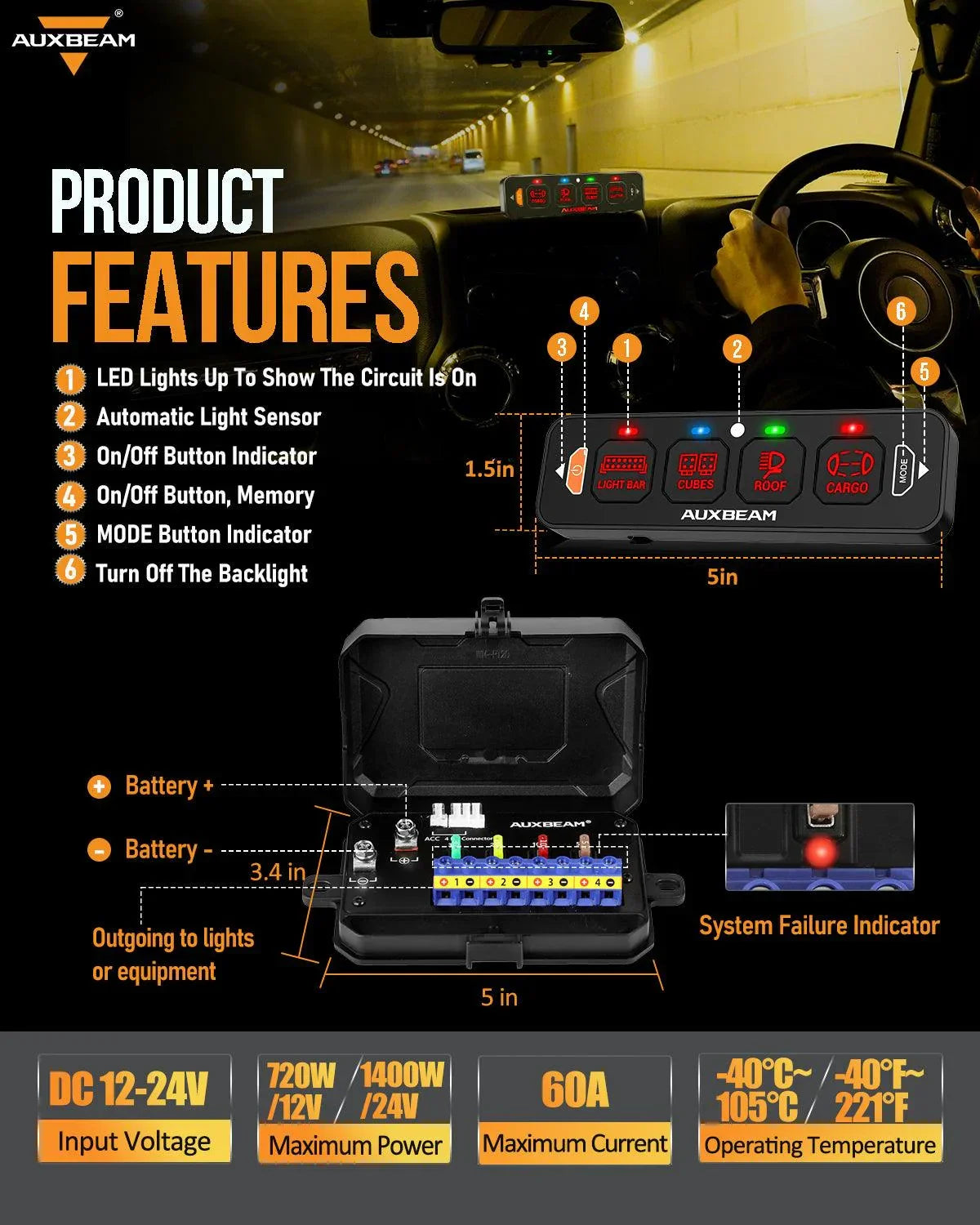

Additional Features

• 4-gang one-sided outlet switch panel
• Controls up to 4 LED lights or electrical devices
• Adjustable RGB backlight colour and brightness
• Automatic dimming based on ambient lighting conditions
• Includes 60 universal switch stickers for custom labelling
• IP65 waterproof rating
• High sensitivity with strong anti-interference performance
• Plug & play installation
• No complex wiring or large dashboard cut-outs required

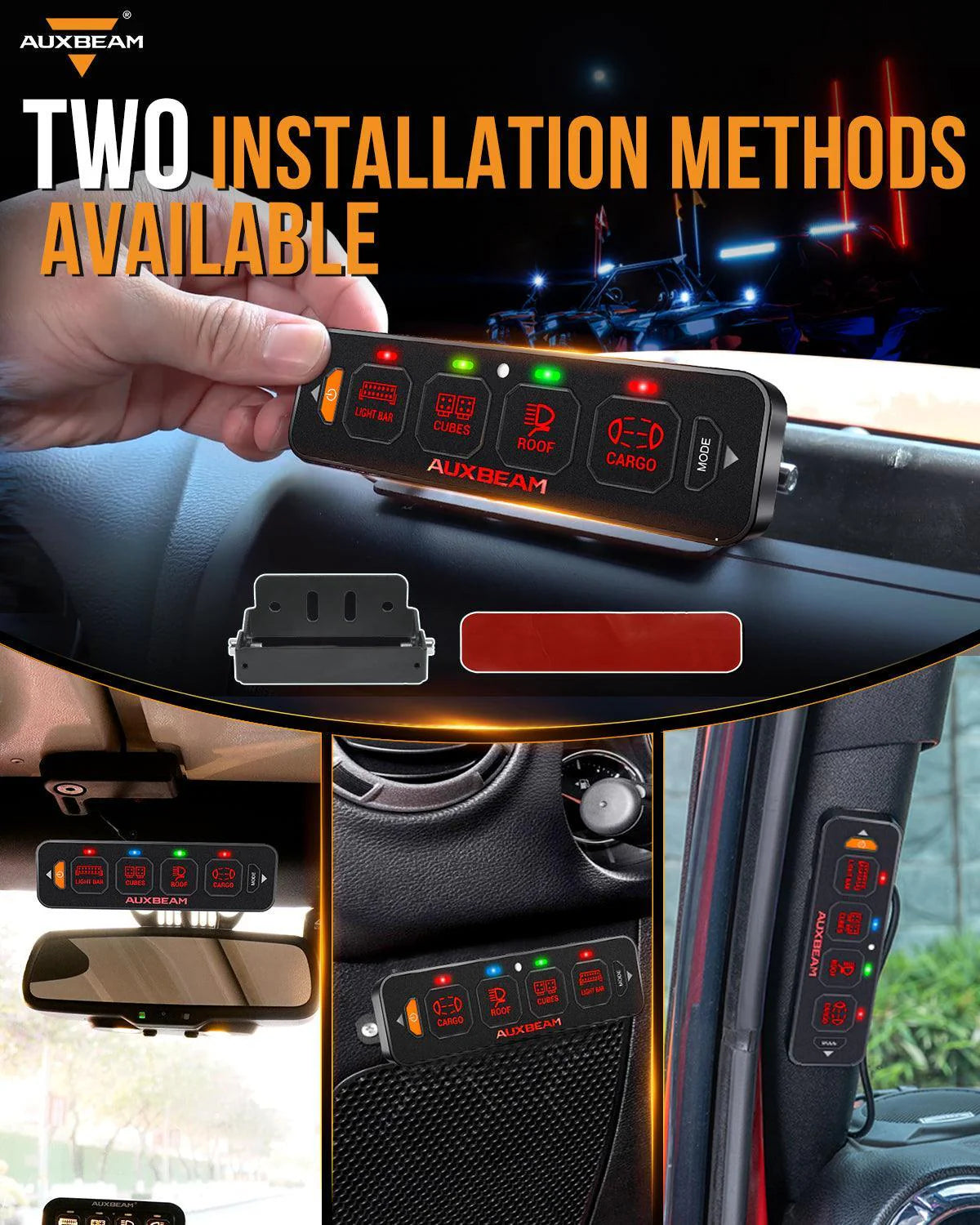

• 2 mounting options:

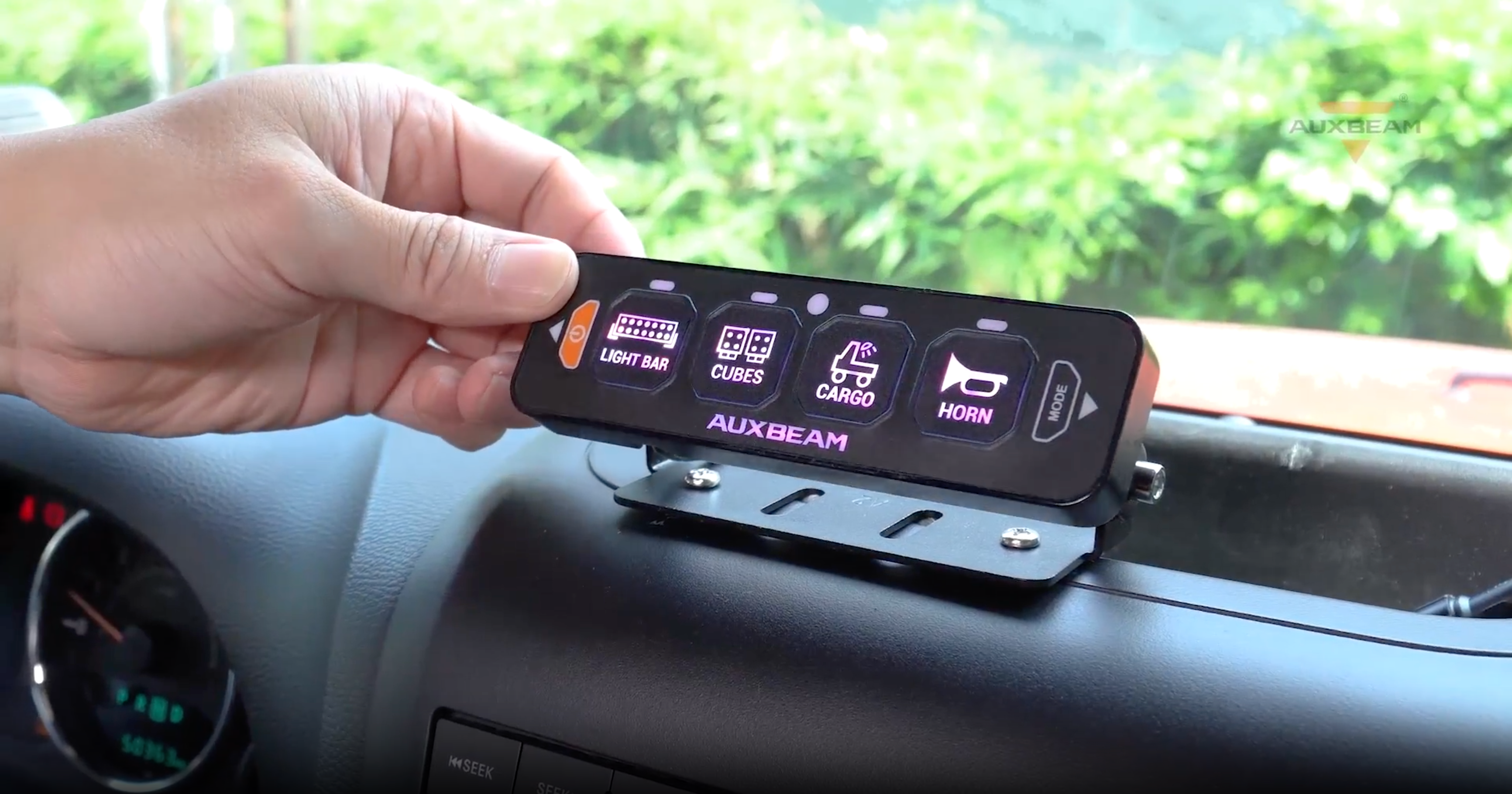

  • Bracket Mount
  • Adhesive Mount

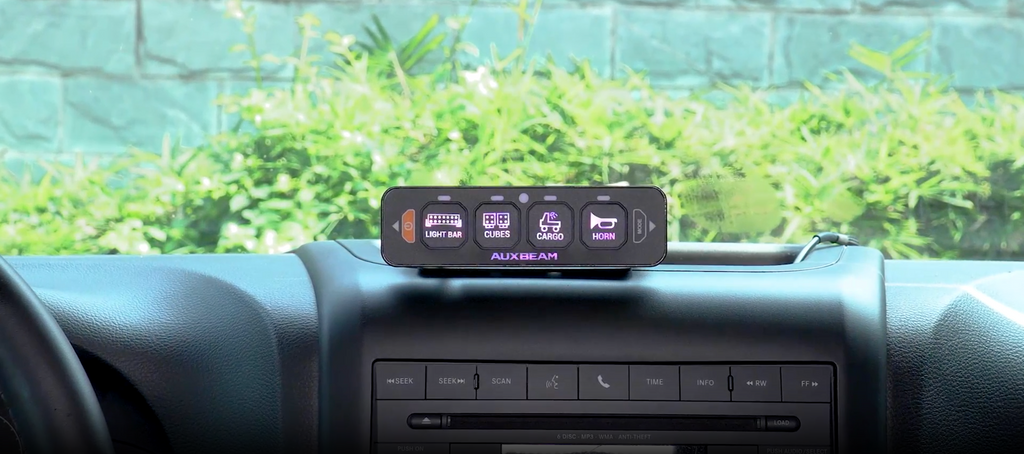

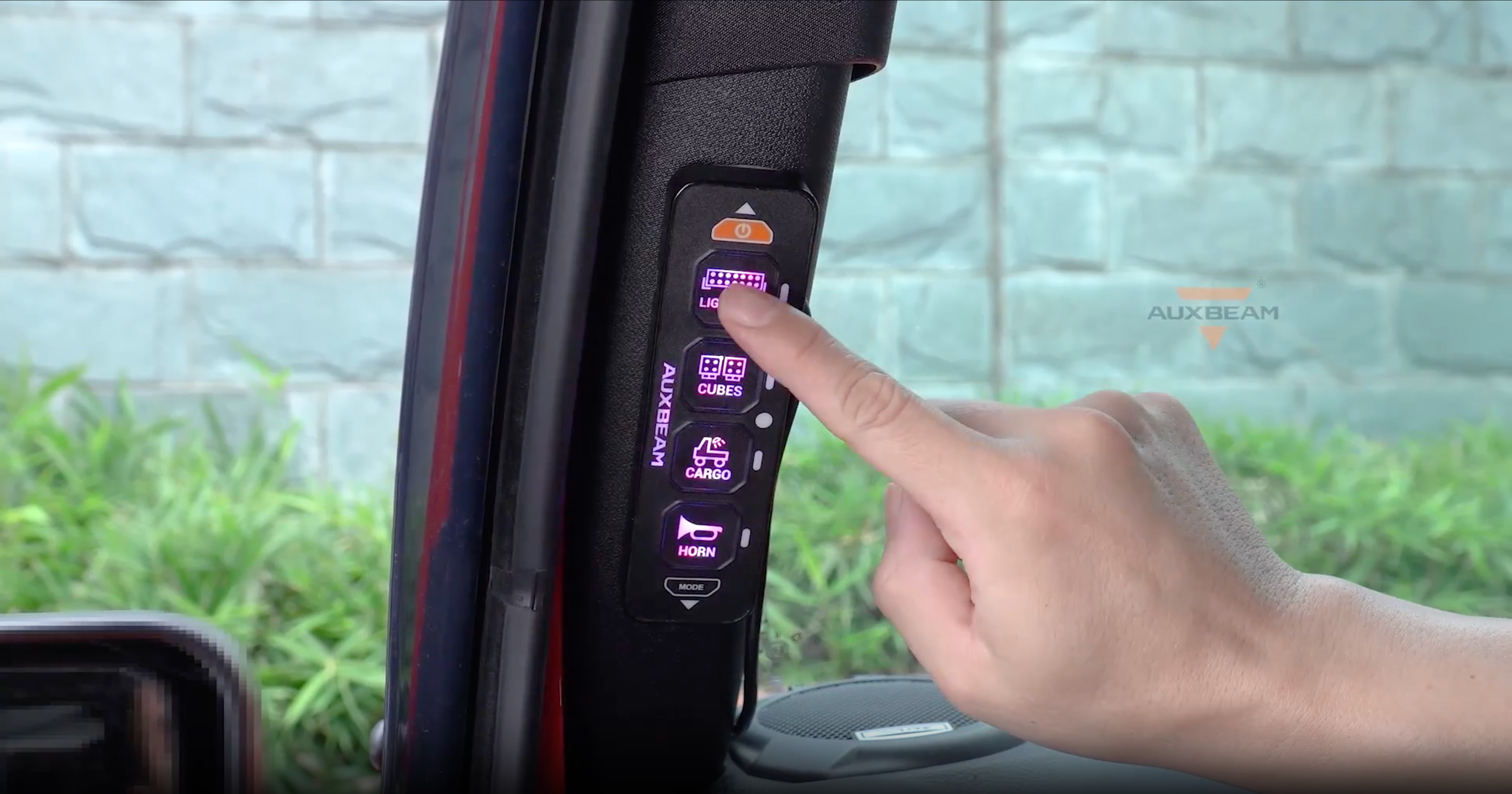

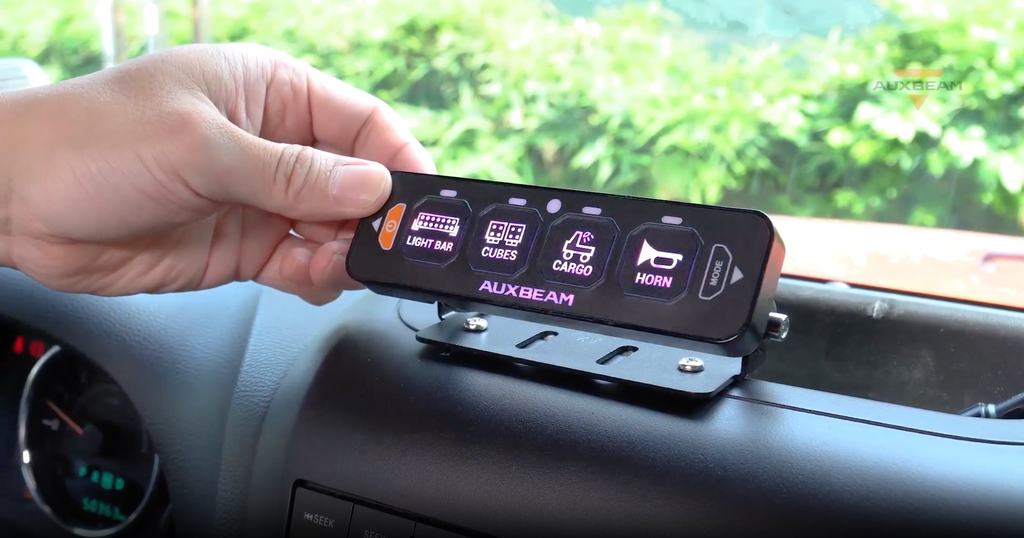

Suitable Mounting Locations

• Dashboard
• Centre console
• Overhead sunglasses holder

Universal Fitment

Suitable for use with:

• Trucks
• Boats
• Cars
• Buses
• Off-road vehicles
• Marine applications
• ATV / UTV
• SUVs
• Side-by-Sides (SxS)
• Heavy-duty machinery

Features

• Supports DC 12V–24V systems
• Waterproof IP65 construction
• Stable and reliable performance
• Excellent protection against EMI and RF interference
• Heavy-duty plug & play wiring harness

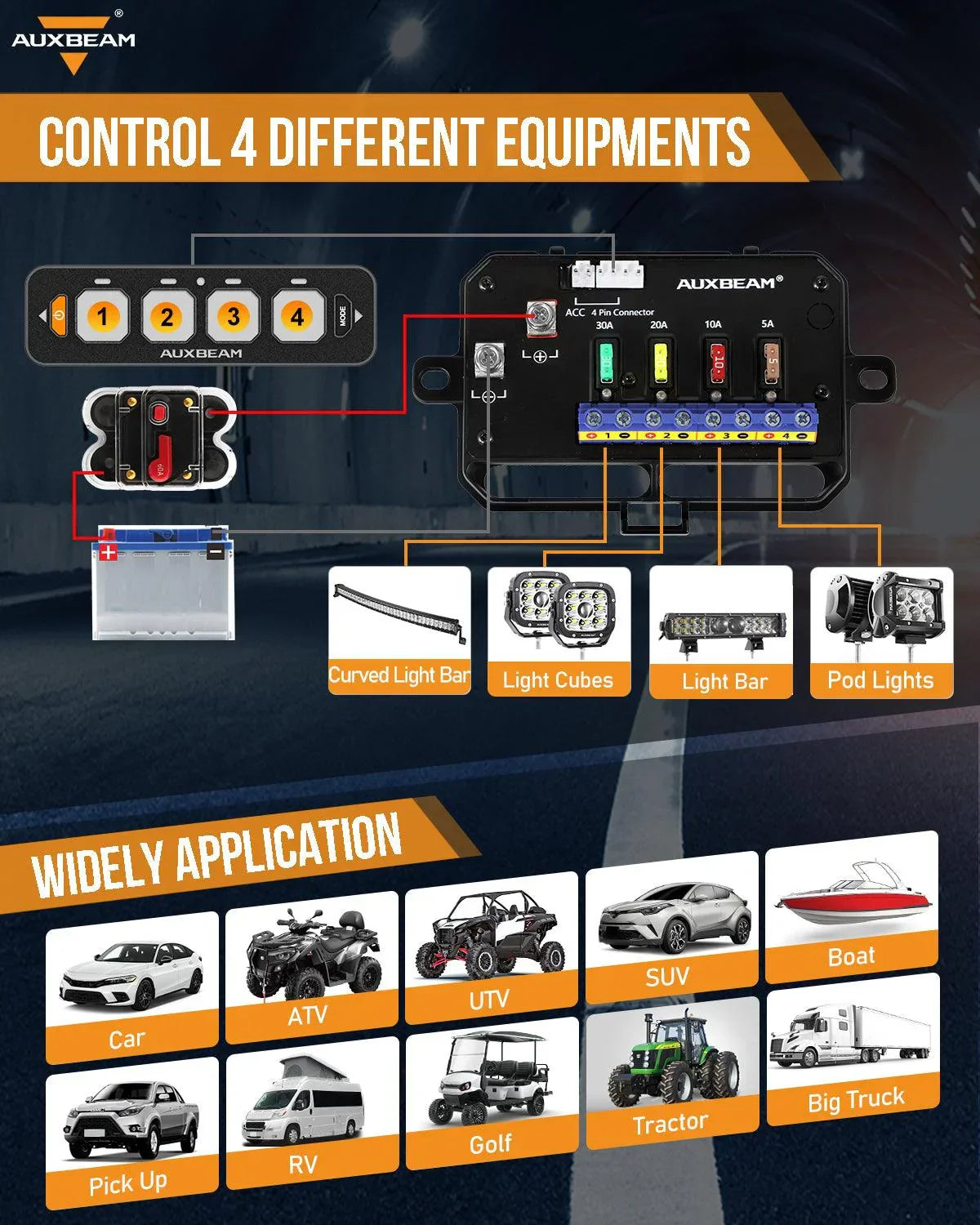

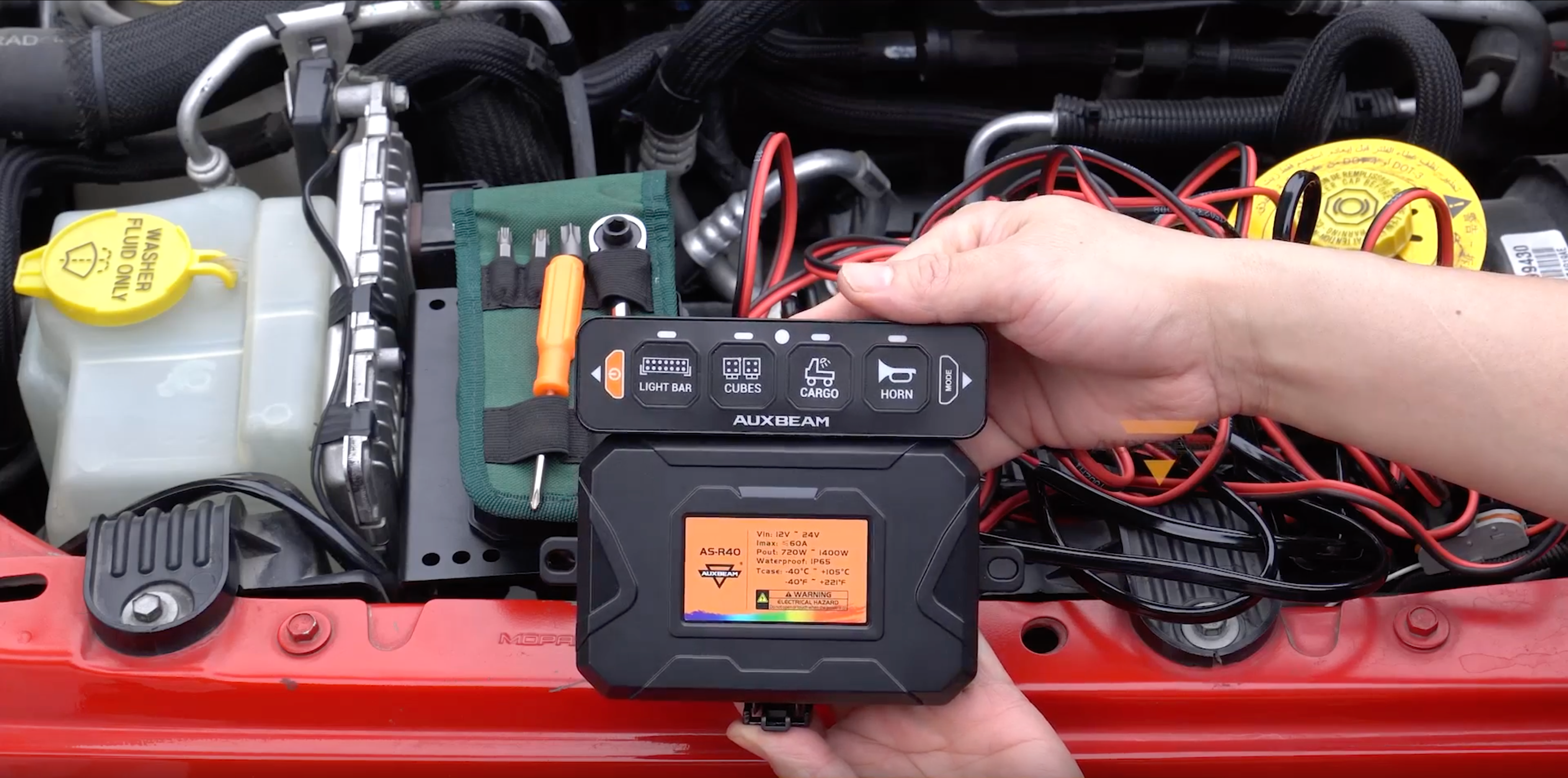

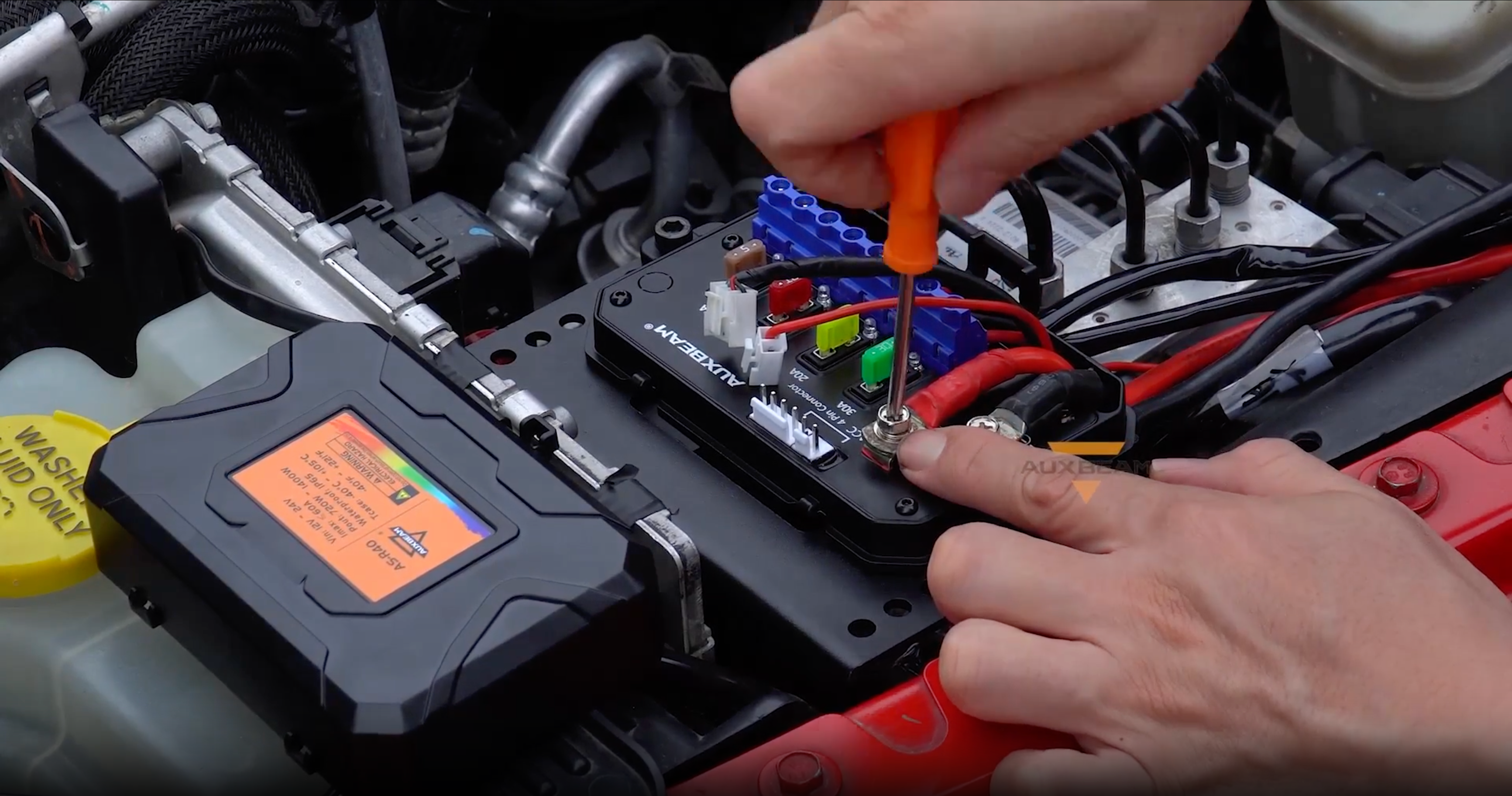

No Wire Splicing Required

• Simple plug & play installation
• Easily connects LED lights and accessories
• Compatible with a wide range of vehicle electrical systems
