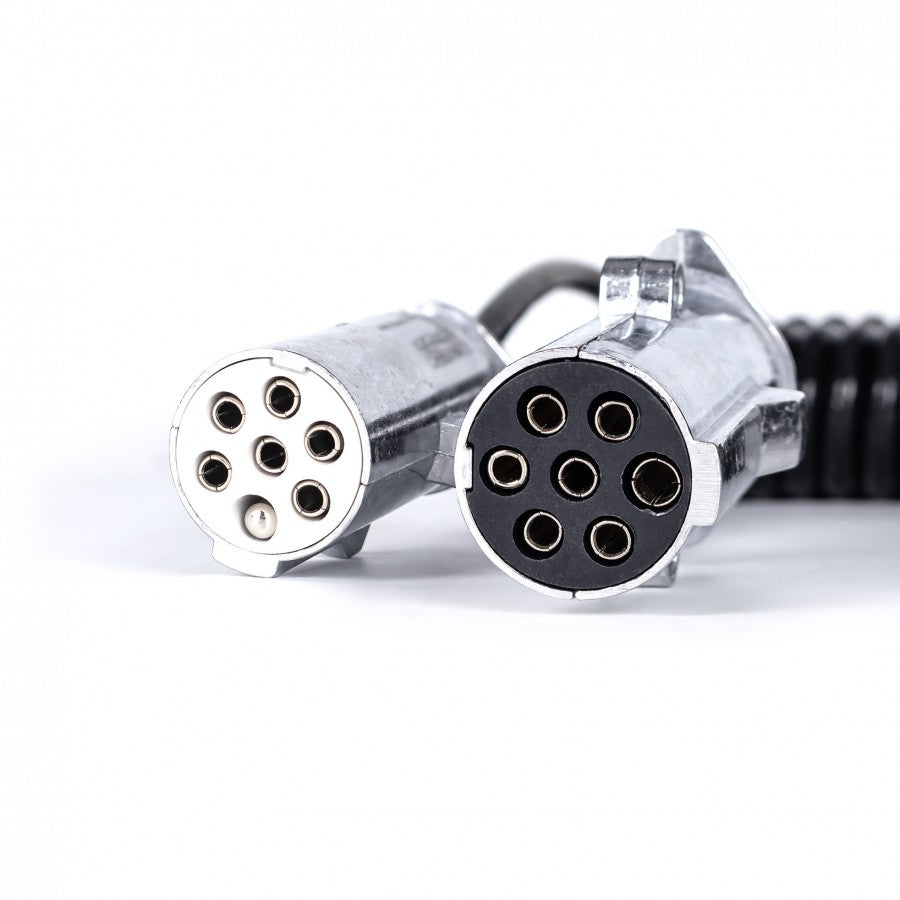

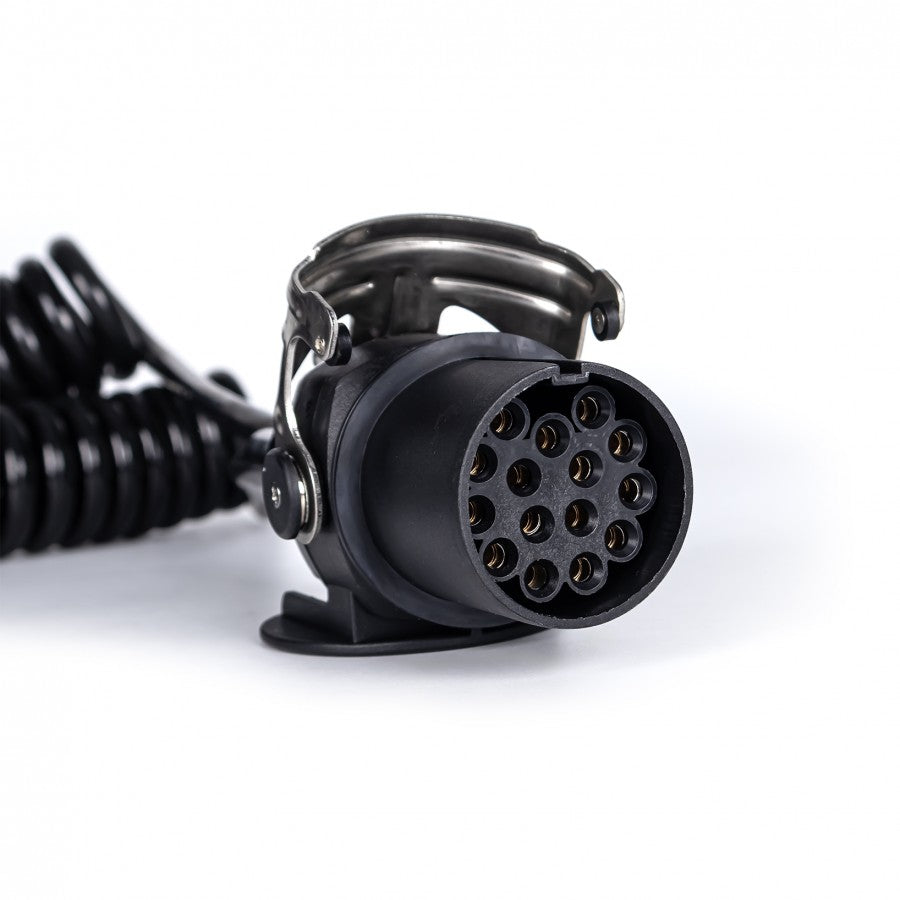

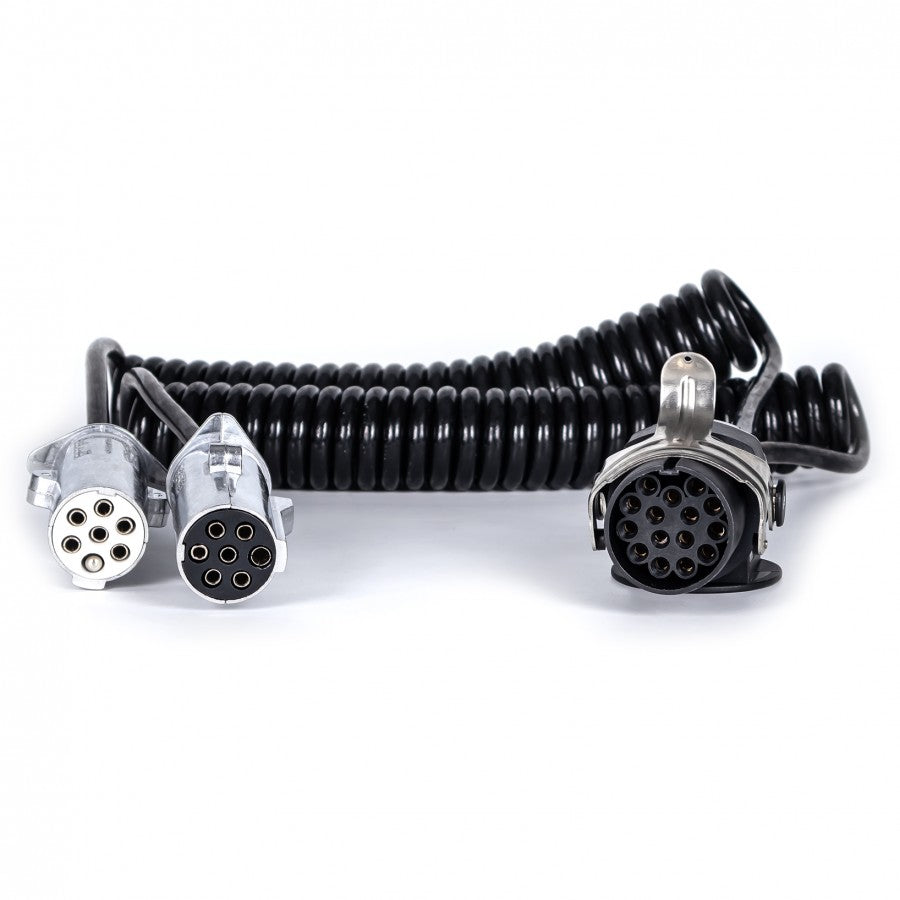

The 24V adapter with a 15-pin to 2x7-pin 3.8m cable (Model E1570) is an accessory designed for a reliable and convenient connection between a semi-trailer and a vehicle. By utilizing this adapter, the user can fully operate both the lighting functions and the trailer braking system. The adapter splits the 15-pin vehicle side into two distinct 7-pin plugs: a 7-pin N (Normal) plug and a 7-pin S (Supplementary) plug.
Wiring Pinout Breakdown
15 Pin to 7 Pin N (Lighting & Standard Functions)
-
Ground: Ground for pins 1-3 and 5-12
-
Left Position: Left position/tail light
-
Left Turn Signal: Left turn signal
-
Stop: Brake light
-
Right Turn Signal: Right turn signal
-
Right Position: Right position/tail light
-
Brake Wear Indicator: Brake wear indicator signal
15 Pin to 7 Pin S (Supplementary Functions)
-
Ground: Ground for pins 1-3 and 5-12
-
Brake Signal: Secondary brake signal
-
Reversing Light: Reversing light
-
+24V Constant: Permanent power supply
-
Lifting Axle: Control for lifting axle
-
+24V Constant: Additional permanent power supply
-
P/M Light: Rear fog light / auxiliary function
Product Features
- Bridges the gap between 15-pin towing vehicles and dual 7-pin (N & S) trailers
- Enables full functionality of essential lighting, safety systems, and auxiliary electronics
- Generous cable length allows for maximum flexibility during tight turns
Technical Data
-
Model: E1570
-
Voltage: 24V
-
Number of Pins: 15-pin to dual 7-pin (7-pin N + 7-pin S)
-
Cable Length: 3.8m
